Description

بوش – دريل كهربائي 650 واط – GBH 2-20 D

Power tools for trade & industry

Advantages

■ High drilling rate and 30% higher chiselling performance

than other rotary hammers in the entry-level class

■ Lightweight and compact, ideal for working overhead

■ Robust stacked construction for a long lifetime

■ Versatile range of applications due to chisel function

■ Overload clutch to protect the user and the machine

■ Forward/reverse rotation for dislodging jammed drill bits

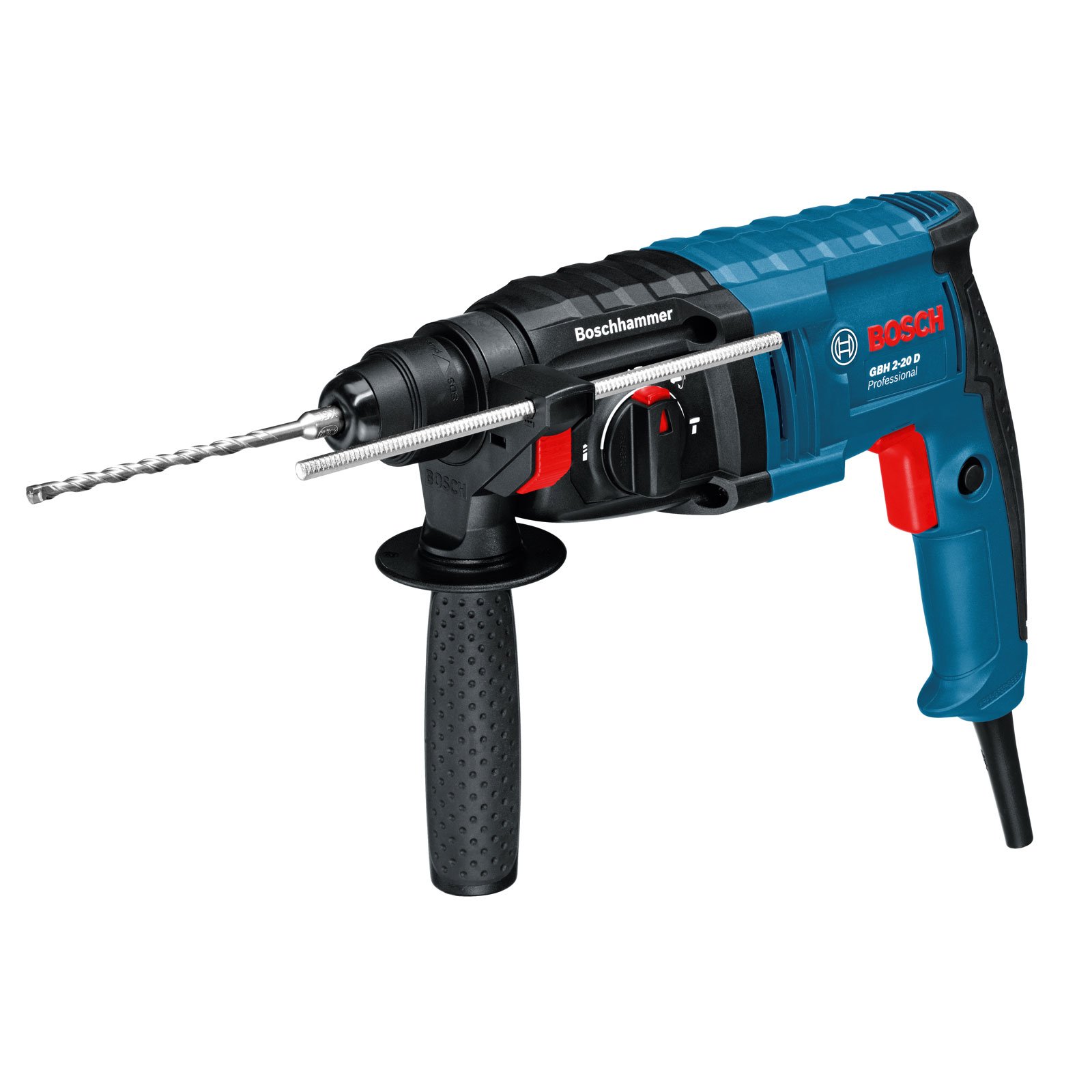

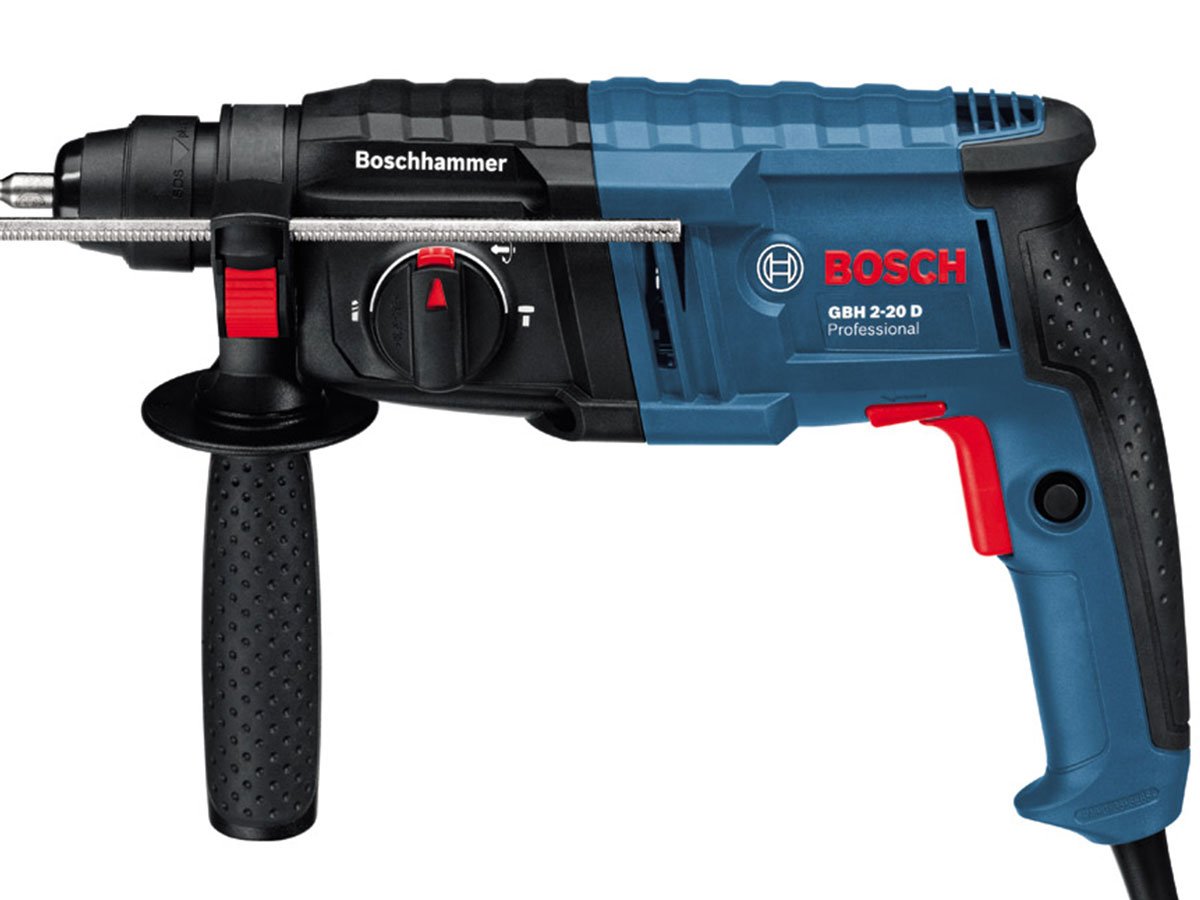

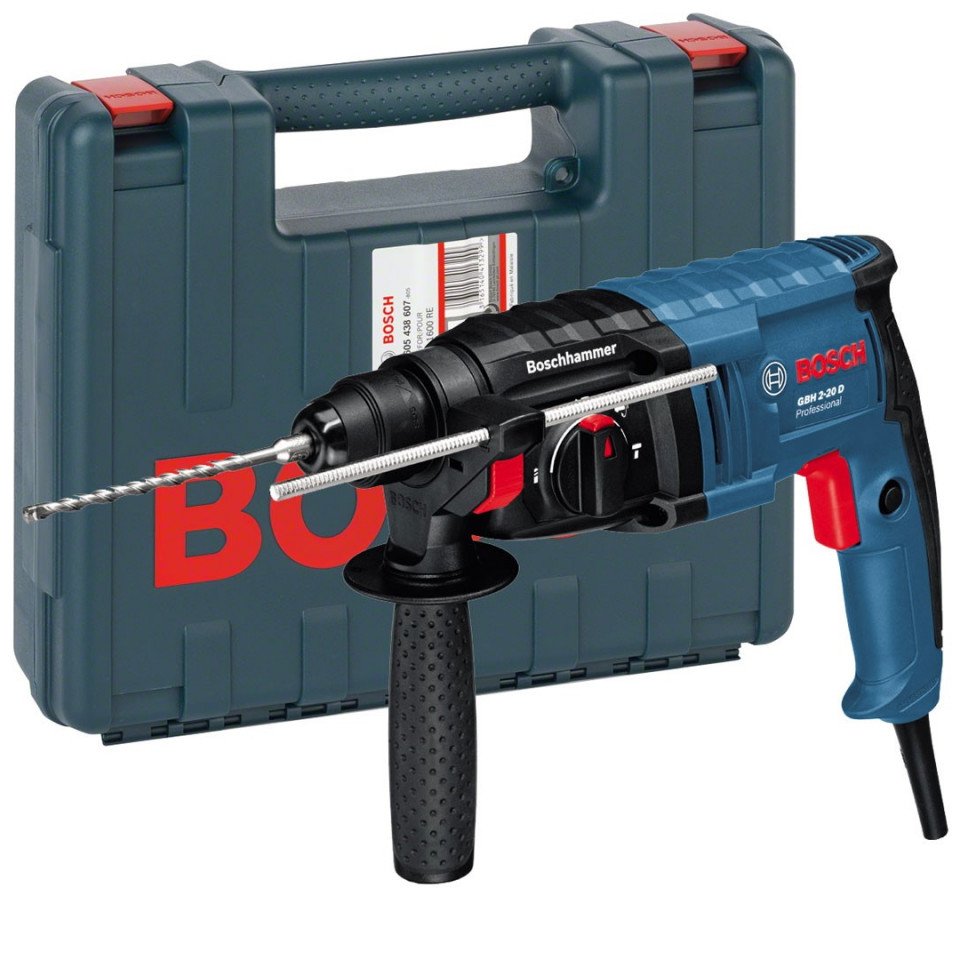

Rotary Hammer with SDS-plus

GBH 2-20 D Professional

* Price including VAT

Top performance in the compact class

The most important data

Rated power input 650 W

Impact energy 1,7 J

Drilling dia. concrete, hammer drill bits 4 – 20 mm

Part number: 0 611 25A 400

> More product information

Technical Data

Noise/vibration information

Battery and power

Hammer drilling in concrete

Rated power input 650 W

Vibration emission value ah 13,5 m/s²

Performance data

Uncertainty K 1,5 m/s²

Impact energy 1,7 J

Chiselling

Impact rate at rated speed 0 – 4.200 bpm

Vibration emission value ah 9,5 m/s²

Rated speed 0 – 1.300 rpm

Uncertainty K 1,5 m/s²

Bit holder SDS-plus

Size and weight

Weight 2,3 kg

Tool dimensions (length) 323 mm

Tool dimensions (width) 82 mm

Tool dimensions (height) 210 mm

Drilling range

Drilling dia. concrete, hammer drill bits 4 – 20 mm

Opt. appl. range concrete, hammer drill

bits

4 – 10 mm

Drilling diameter in concrete with core

cutters

68 mm

Max. drilling diameter masonry, core

cutters

68 mm

Max. drilling diameter in steel 13 mm

Max. drilling diameter in wood 30 mm

كتيب التشغيل

Gbh 2-20 d

Gbh2-20d

فيديو للشنيور
