Description

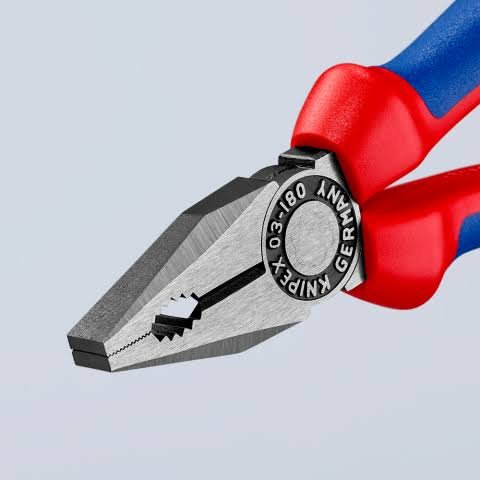

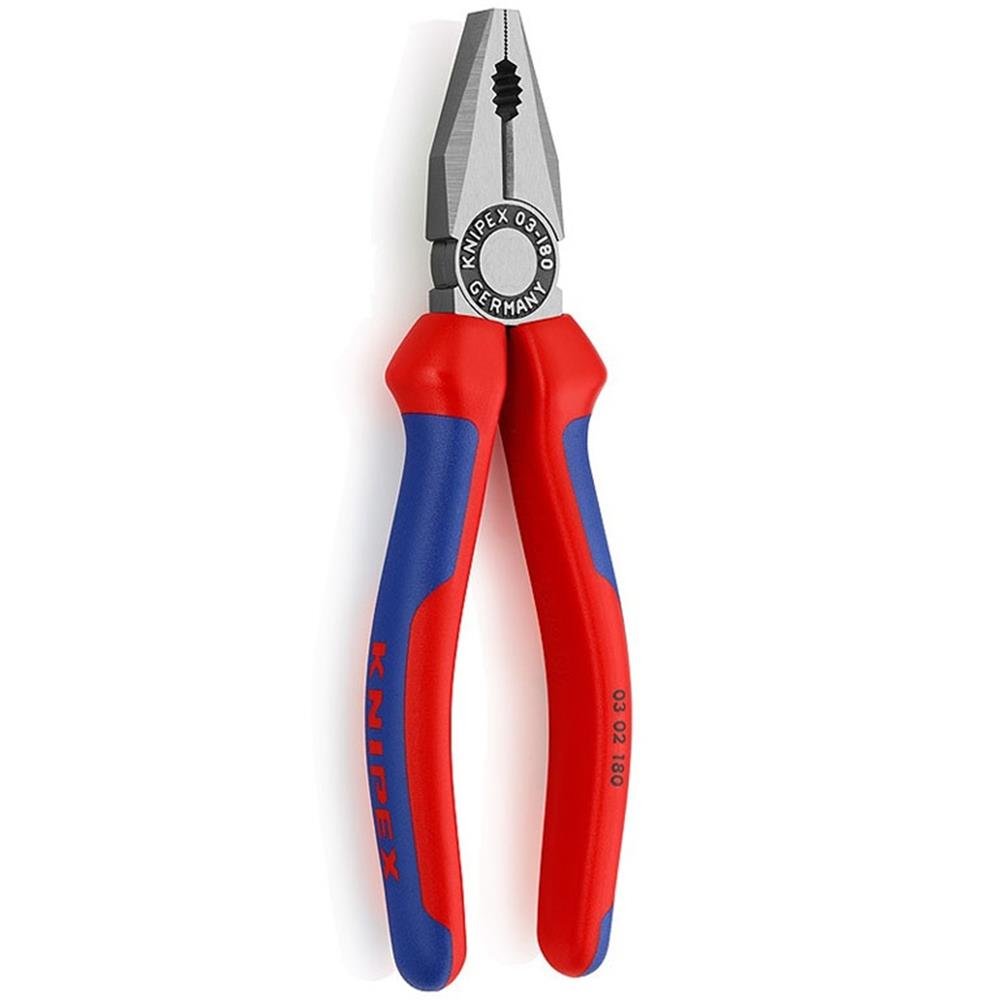

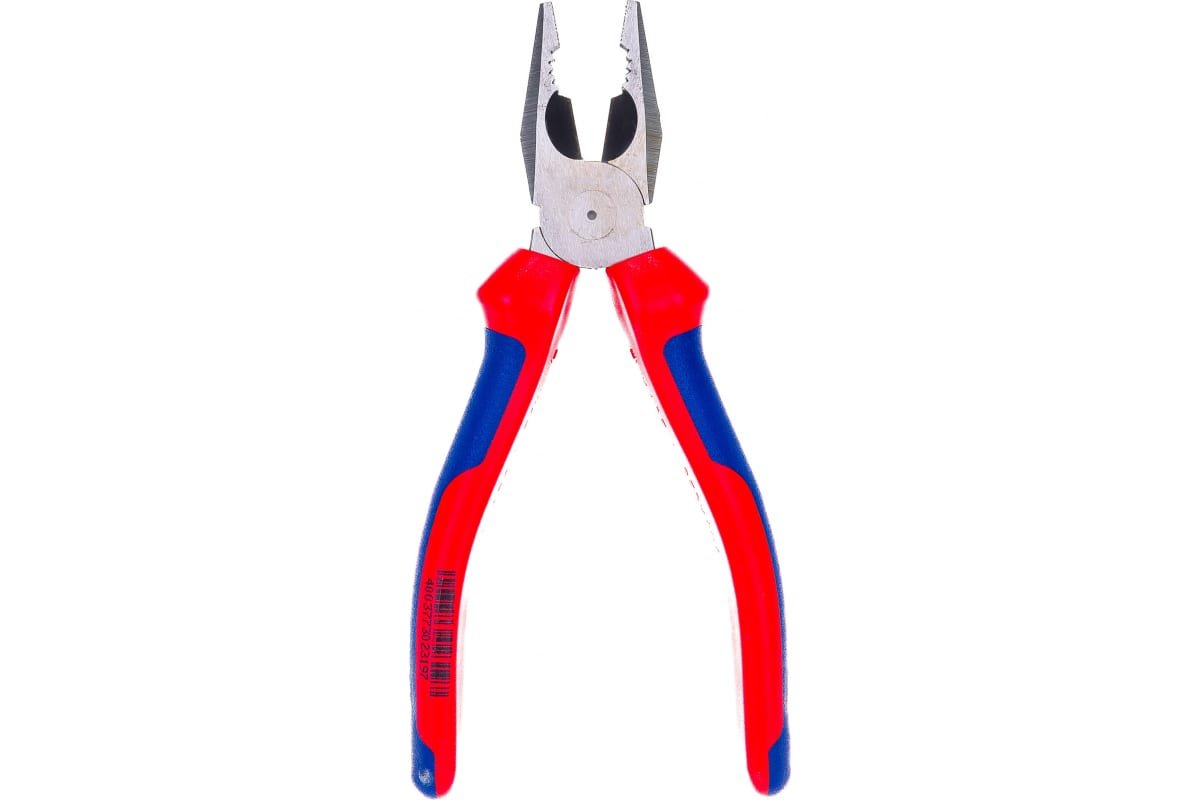

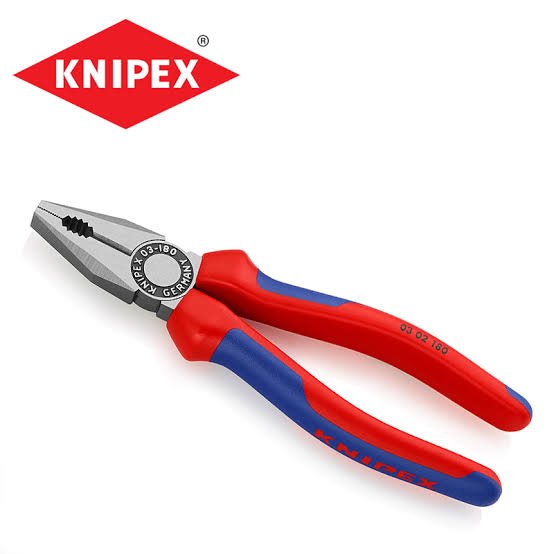

بنسة زرادية نيبكس موديل knipex 0302180

مقاس ١٨٠ مم ٧ بوصة

عازل مزدوج

بلد المنشا المانيا

• With gripping zones for flat and round material, suitable for versatile use
• With cutting edges for soft and hard wire
• Long cutting edges for thicker cables
• Cutting edges additionally induction-hardened, cutting edge hardness approx. 60 HRC
• With comfort handles: consisting of three ergonomic components for optimized handling and equipped with two KNIPEXtend interfaces for extensions
• Part No.

  03 02 180

  EAN

  4003773023197

  pliers

  black atramentized

  Head

  polished

  Handles

  with comfort handles

  Weight

  254 g

  Dimensions

  180 x 52 x 21 mm

  Standard

  DIN ISO 5746

  REACH compliant

  does not contain SVHC

  RoHS compliant

  not applicable
  Cutting capacities medium hard wire (diameter)

  Ø 3.4 mm

  Cutting capacities hard wire (diameter)

  Ø 2.2 mm

  Cutting capacity copper cable, multiple-stranded

  Ø 12.0 mm

  Cutting capacity copper cable, multiple-stranded

  16.0 mm²

  Versatile and robust combination pliers

  With gripping functions for flat and round parts and strong cutting edges

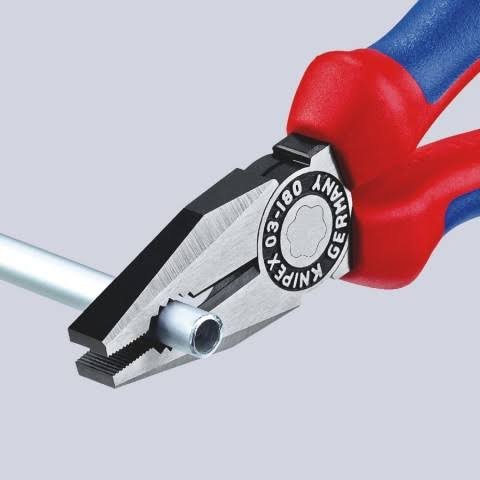

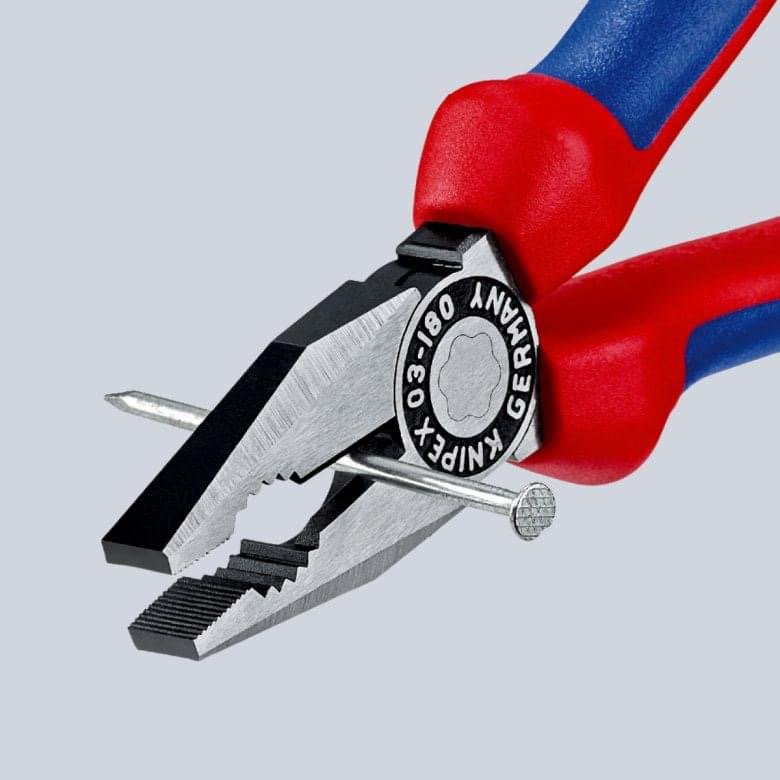

  Flat workpieces are held firmly by the serrated gripping jaws, preventing twisting. There is a serrated, oval burner port for round and half-round objects. Several tool functions are possible through these two holding options: e.g. counter-holding small hexagonal nuts, pulling and holding sheet metal and angled steel, holding and turning pipes and conduits, bending locking pins and tensioning Bowden cables. The Knipex 03 02 180 combination pliers also prove to be a useful universal tool for cutting. They cut multi-strand copper cables up to Ø 12.0 mm, medium-hard wire up to Ø 3.4 mm and even hard wire (wire rope strand) up to Ø 2.2 mm. Thick copper cables (up to 16 mm²) can also be inserted between the long cutting edges and cut powerfully. The hardness of the cutting edges (approx. 60 HRC) and their sharpness ensure that the effort expended by the user is low.

  Forged from special tool steel and oil hardened

  The Knipex 03 02 180 combination pliers retain their high tool usefulness for a long time. Forged from special tool steel, they receive additional, multi-stage oil hardening, followed by black atramentising against corrosion. The combination pliers with their long tool life and many possible uses in trade and industry, typical for Knipex, are appealing factors when choosing which tools to use.

  Brief overview

  Solid, excellently machined combination pliers

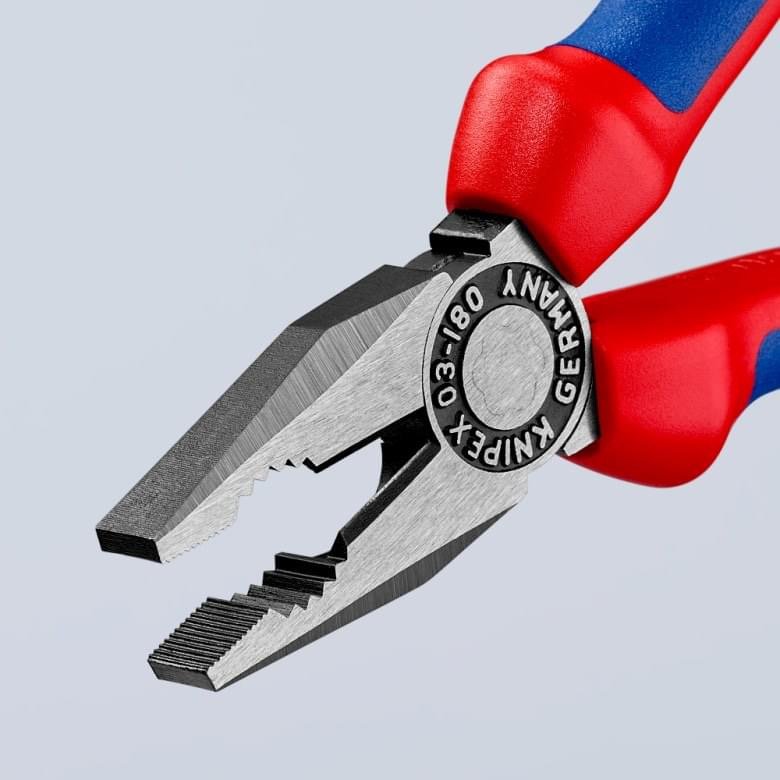

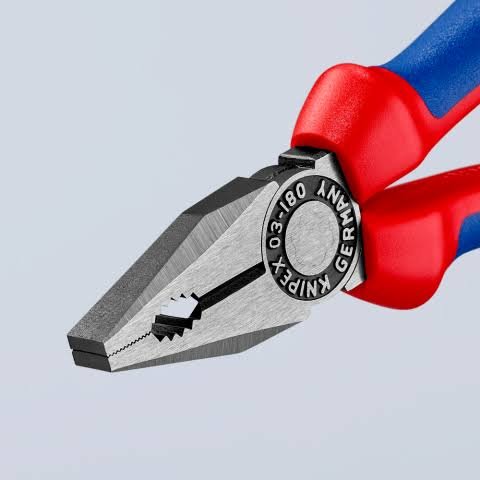

  Serrated jaws for flat parts, serrated burner port for round parts

  Long cutting edges for thick cables

  Cutting value for soft wire, e.g. multi-strand copper cable: up to Ø 12 mm (16 mm²)

  Cutting value for medium-hard wire Ø 3.4 mm

  Cutting value for hard wire Ø 2.2 mm

  Pliers black atramentised, head finely ground, handles with multi-component grips

  Net weight 254 g, length 180 mm
