Description

بنسة ببوز سبيشيال نيبكس صناعة الماني مقاس 145مم 6 بوصة عازل 1000 فولت بجسم نيكل

knipex 08 26 145

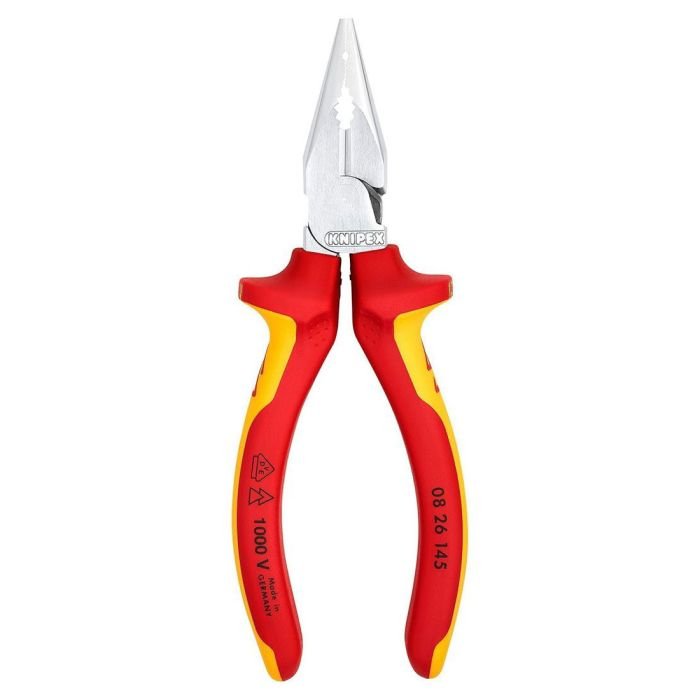

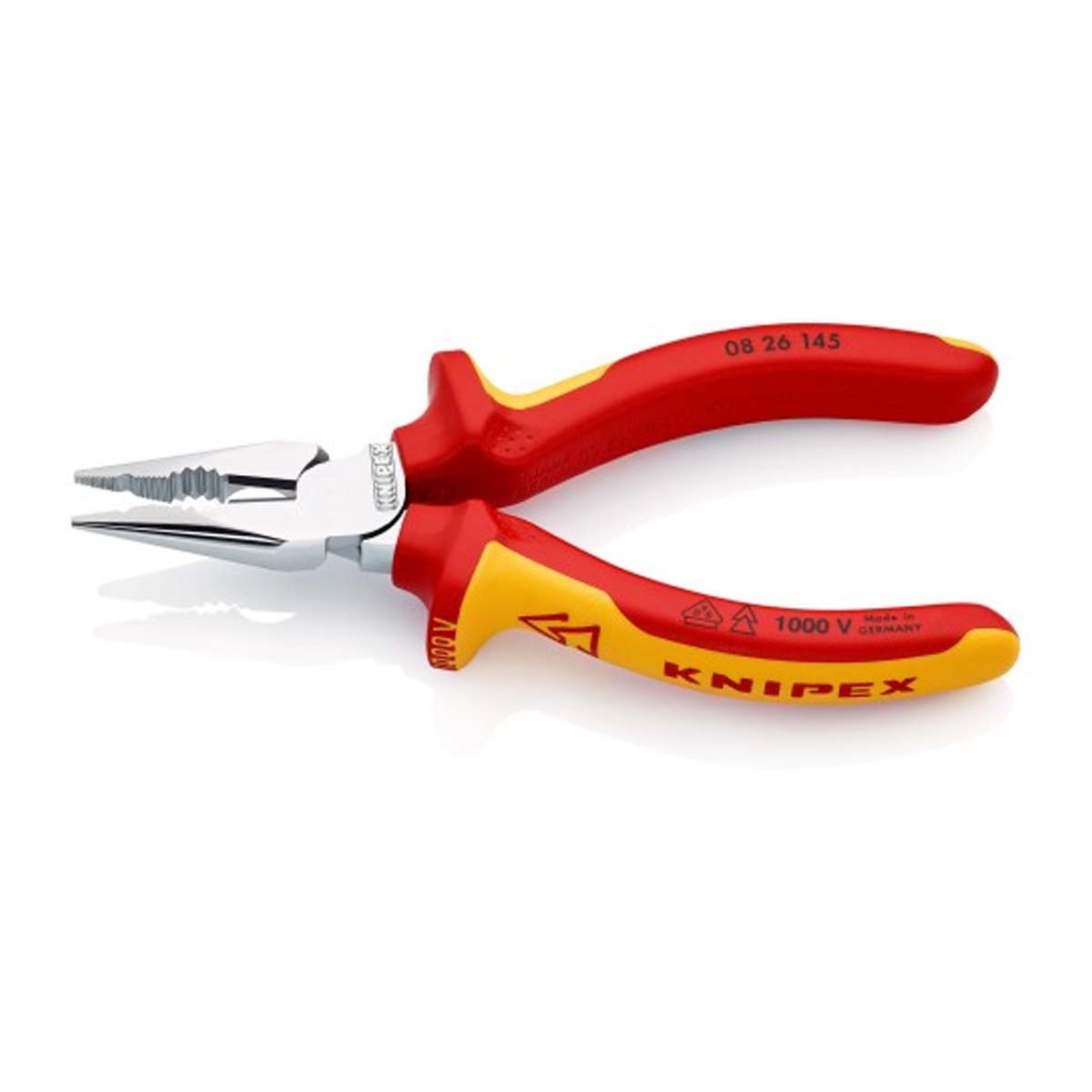

Needlenose plier

Share

>90 %
264 g

Easy cutting thanks to the high leverage joint
Handy use when working in confined areas thanks to slim head design and pointed jaws (anti-twist)
Gripping surfaces with special convex contour on one side for secure gripping of flat parts
The reliable and diverse combination pliers when out and about
With cutting edges for soft, medium-hard and hard wire
Cutting edges additionally induction-hardened, cutting edge hardness approx. 61 HRC
Long service life and stable tips
Milled groove in the gripping area permits small parts such as nails, pins and bolts to be held and pulled
Handles

Length

Technical attributes
Part No.
08 26 145
EAN
4003773079361
Pliers
chrome-plated
Head
chrome-plated
Handles
insulated with multi-component grips, VDE-tested
Weight
145 g
Dimensions
145 x 58 x 18 mm
Standard
DIN ISO 5746 DIN EN 60900 IEC 60900
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Cutting capacities medium hard wire (diameter)
Ø 3.0 mm
Cutting capacities hard wire (diameter)
Ø 2.0 mm
Cutting capacity copper cable, multiple-stranded
Ø 8.0 mm
Cutting capacity copper cable, multiple-stranded
16.0 mm²
VDE tested
yes
Needlenose plier | 08 26 145
Developed for professional and household applications

Good for everyday use, good when out and about

Pulling a nail out of the wall or holding a nail to drive it in, cutting wire, pulling out the locking pin on a door handle, tightening the Bowden cable on a bike – there are several occasions when the needle nose combination pliers from Knipex prove to be a useful everyday helper. They are ideal for working in inaccessible places due to the slim head design. Small components such as pins, bolts and nails are held securely and safely in the milled groove in the handle area. Knipex has developed the 08 26 145 to be reliable, versatile needle nose combination pliers for use when out and about, but which of course perform just as well in the workshop and for electrical installation work.

Good for the workshop, because very secure and stable when gripping

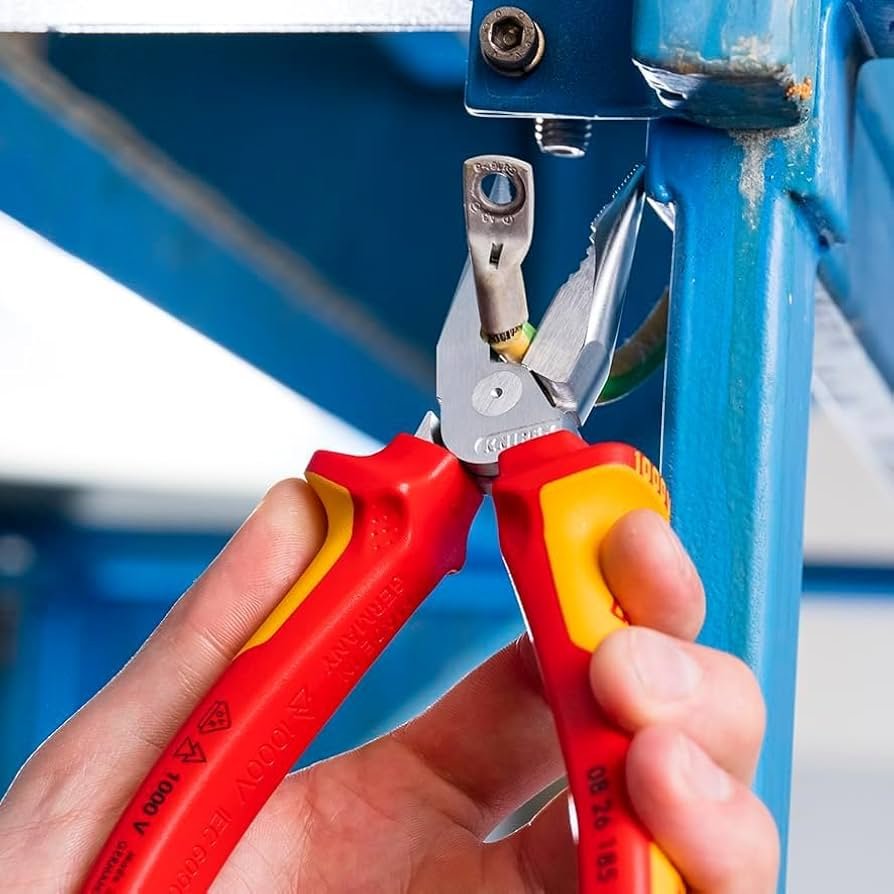

These pliers are also a useful asset in the professional workshop and installation area. The castle nut is secured, the cable inserted into the terminal when wiring, the washer put in position; flat parts up to around 6 mm thick are held securely while working by the gripping surface that is convex on one side. The pointed jaws are also protected against rotation when holding and bending heavier components.

Forged from high-grade special tool steel

The needle nose combination pliers from Knipex can cut stranded Cu cable up to 16.0 mm², medium-hard wire (nails) up to Ø 3.0 mm and even hard wire (wire rope) up to Ø 2.0 mm. The high transmission, high leverage joint effectively helps the user generate the necessary force, and the pliers are extraordinarily stable. They are forged from special tool steel and are oil-hardened in multiple stages after forging. The sum total of all qualities produces reliable pliers with many possible applications – for many years thanks to the long tool life and chrome-plating.

Brief overview
Cutting capacity of hard wire Ø 2.0 mm
Cutting capacity for medium-hard wire Ø 3.0 mm
Cutting capacity Cu cable, stranded: up to a diameter of 8.0 mm
Cutting capacity Cu cable, stranded: 16.0 mm²
Pliers are chrome-plated
Handles with insulating multi-component grips
Net weight 145 g
VDE tested
Needlenose plier | 08 26 145
Combination needle nose pliers from Knipex: versatile, reliable and stable

Several functions and qualities are combined in the combination needle nose pliers from Knipex, and this wide range of uses means they are in great demand for everyday use as well as for the workshop. The great benefits of the tools, their safe, comfortable use and a long tool life are the results of over 130 years of experience in manufacturing pliers, constant product development and the commitment to high quality standards that Knipex is famous for.

Needlenose plier | 08 26 145

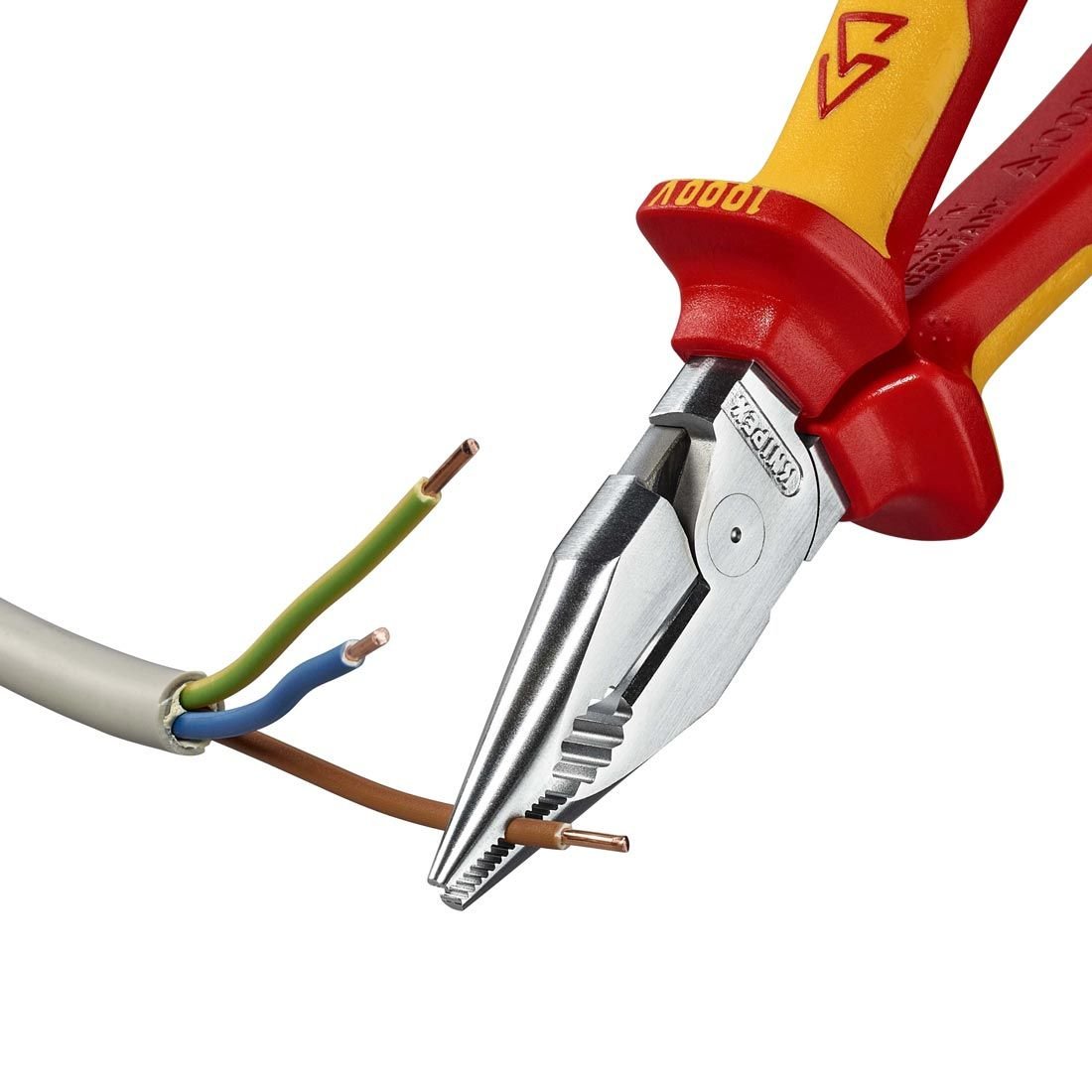

High transmission, high cutting force

Cuts stranded Cu-cable up to 16.0 mm², nails up to Ø 3.0 mm and wire rope up to Ø 2.0 mm.

Needlenose plier | 08 26 145

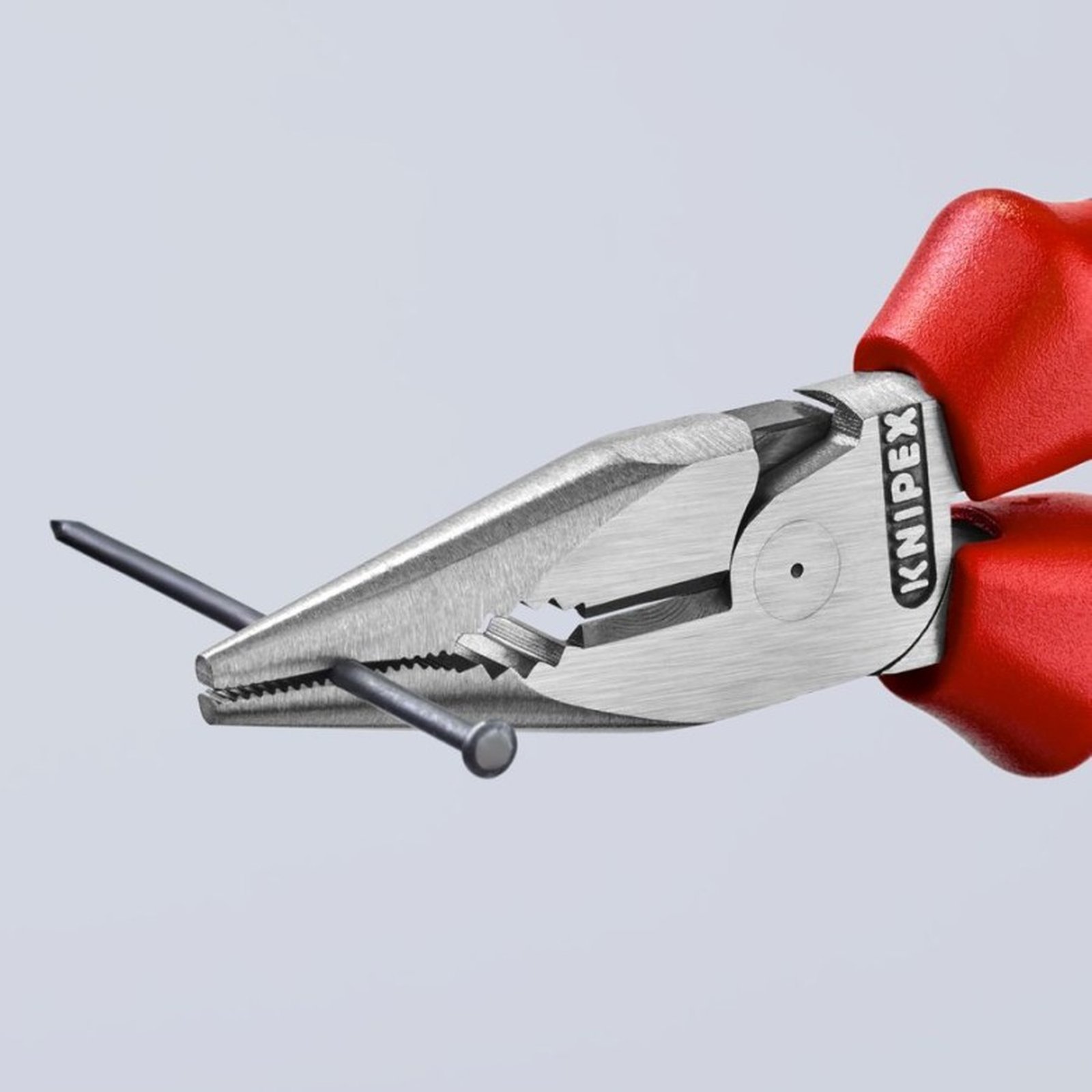

Milled groove in the grip area

Milled groove for the secure, safe holding and pulling of small components and wire

Needlenose plier | 08 26 145
Pipe grip for round parts

Round parts such as pipes can be gripped and held well and powerfully twisted using the pipe grip.

Needlenose plier | 08 26 145
Anti-twist gripping

The pointed, powerful gripping jaws produce a very firm, non-rotating hold on the component.

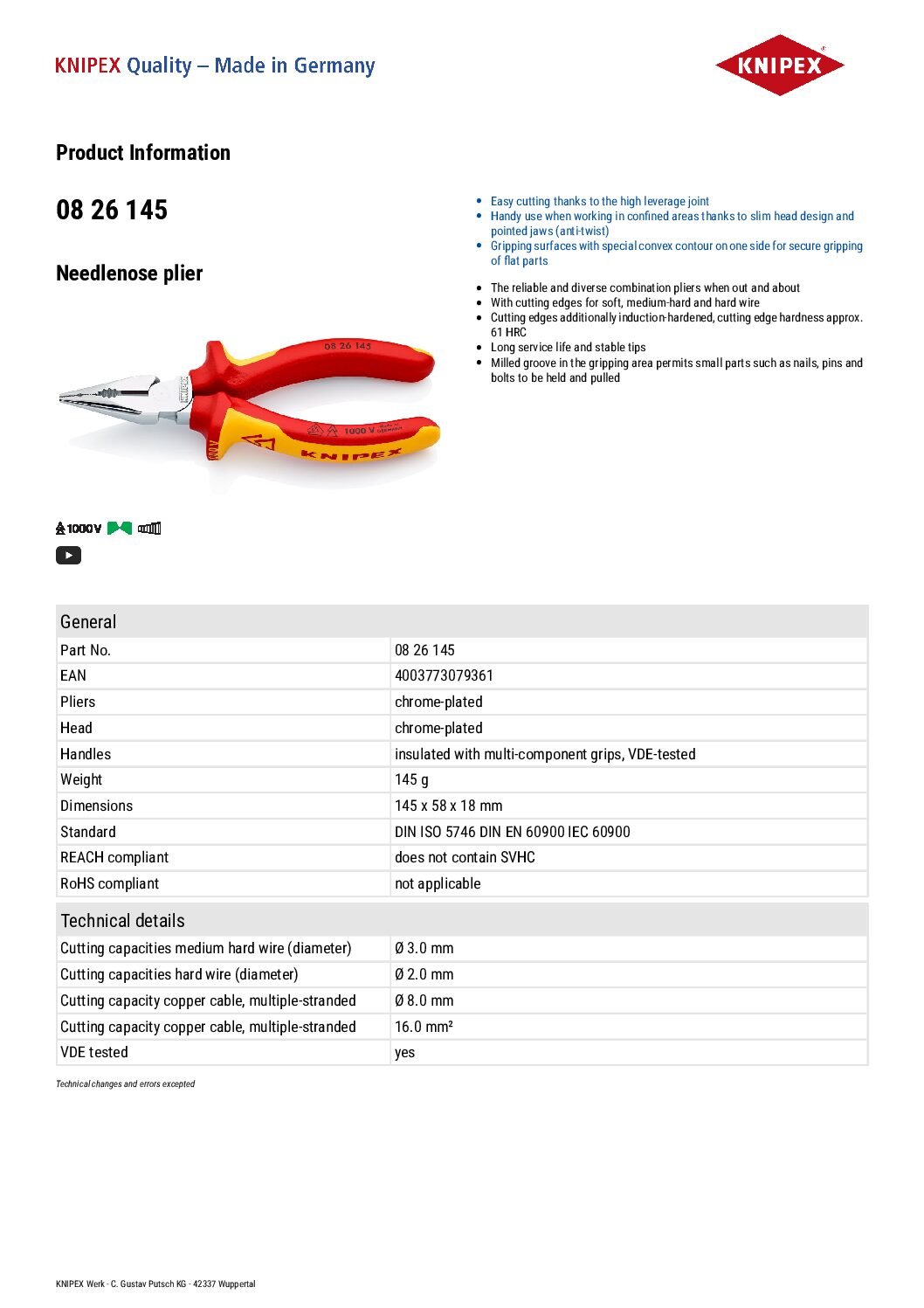

Documents

08-26-145-en
