Name: KNIPEX 74 02 200
Brand: Knipex
SKU: 2018
Availability: InStock

Description

قصافة اسلاك صلب و وايرات صلب مقاس 200مم 8 بوصة ماركة نيبكس صناعة الماني

Knipex 74 02 200

High Leverage Diagonal Cutter

For very tough, continuous use
High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
Precision cutting edges also induction-hardened (hardness approx. 64 HRC), for all wire types including piano wire
With comfort handles: consisting of three ergonomic components for optimized handling and equipped with two KNIPEXtend interfaces for extensions

Technical attributes

Part No.

74 02 200

EAN

4003773040309

Pliers

black atramentized

Head

polished

Handles

with comfort handles

Weight

304 g

Dimensions

200 x 50 x 21 mm

Standard

DIN ISO 5749

REACH compliant

does not contain SVHC

RoHS compliant

not applicable

Cutting capacities medium hard wire (diameter)

Ø 4.2 mm

Cutting capacities hard wire (diameter)

Ø 3.0 mm

Cutting capacities piano wire (diameter)

Ø 2.5 mm

High Leverage Diagonal Cutter | 74 02 200

High leverage diagonal cutters for hard constant use

Reliable helpers for professional users: tough and strong

Thanks to their high cutting capacity and indestructible strength, the Knipex 74 02 200 high leverage diagonal cutters are highly valued especially by craftsmen, and therefore in great demand. These high leverage diagonal cutters are also often used in the motor trade, on the building site and in industry.

They are also ideal as constant companion in mobile applications, because despite their compact size, they are still able to cut hard materials effortlessly. At just 200 mm long, the Knipex 74 02 200 fits in most work bags and in almost any toolbox

Low weight, optimum ergonomics and geometry: a 20 % energy saving

Compared to conventional diagonal cutters of the same size, the Knipex 74 02 200 offers a much better ratio between the force required and cutting capacity. The geometry of the cutting edges, joint and the handles has been designed for efficiency. But power is not all – this tool is also the first choice for hard constant use, e.g. assembly work, because its ergonomic design makes work much easier for the user. Thanks to the hand-friendly shape of the handle, the benefits of using these high leverage diagonal cutters are plain to feel and see. The multi-component grips provide added comfort. These high leverage diagonal cutters are extremely stable due to their robust design with forged joint axle. They are not particularly heavy at 304 g.

*With ergonomic comfort handles made of three components; illustrations may show older grip cover types

Brief overview

Compact high leverage diagonal cutters with forged joint axle

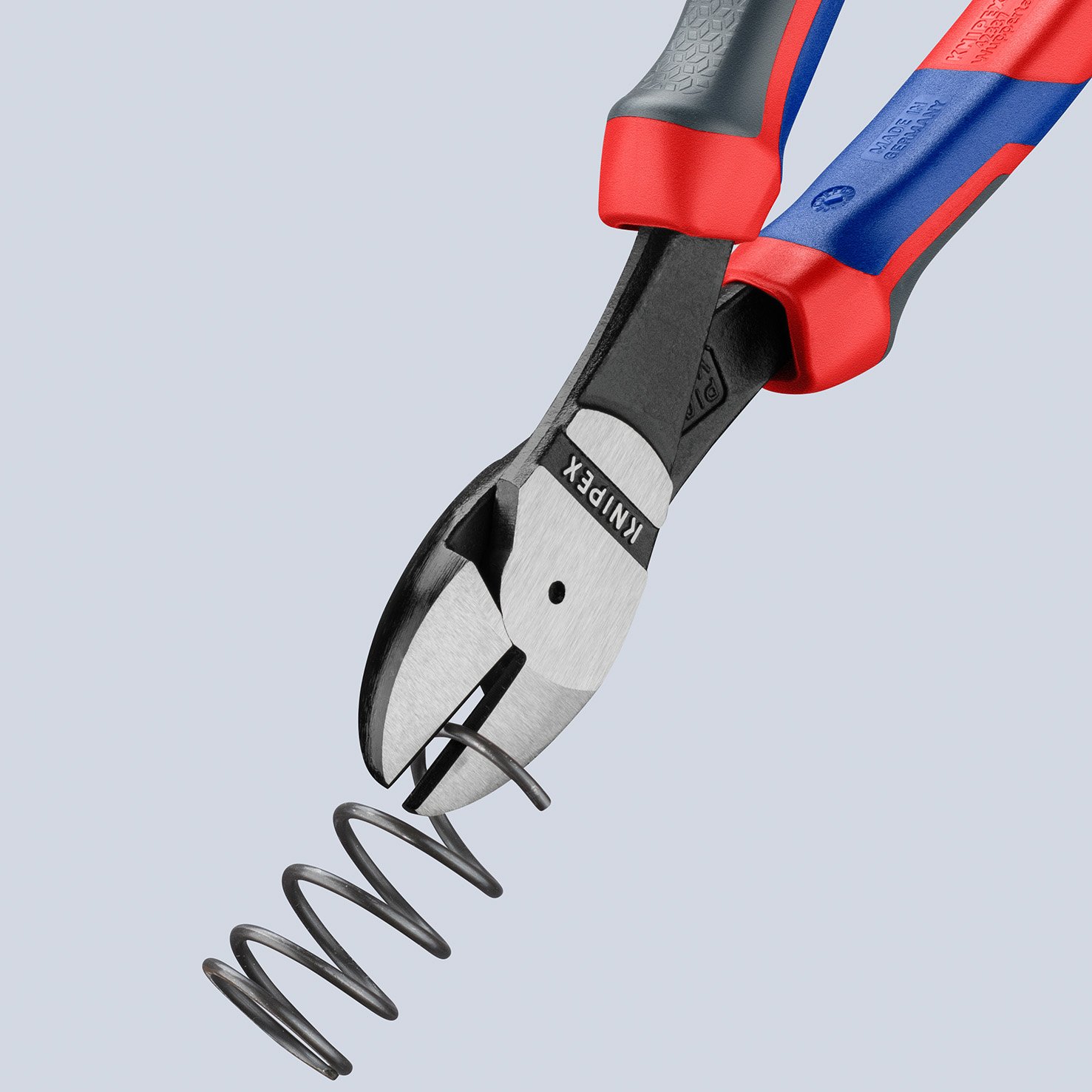

Cut piano wire (spring steel wire) up to Ø 2.5 mm

Big quality in a compact format: only 248 mm long

Low weight (326 g)

Cutting edge hardness approx. 64 HRC

Production according to high standards for best work results and a long service life

Sit firmly in the hand thanks to ergonomic handle design and multi-component grips

Chrome vanadium electric steel, forged, oil hardened in multiple stages

Precise cutting of medium-hard and hard wire as well as piano wire

One can see how good diagonal cutters are by the cut. Knipex high leverage diagonal cutters deliver best performance. In addition to the quality forged metal parts made of high performance chrome vanadium tool steel, the most important quality criteria at Knipex include their precise machining. The sharpness and angle of the cutting edges on the Knipex 74 02 200 are designed for top performance. The excellent machining of these high leverage diagonal cutters makes sure that the material to be cut is always cut cleanly. The high quality of the tool steel produced in Germany, the hardness of the cutting edges and the forged joint axle guarantee exceptional stability and a long service life.
