Name: KNIPEX 95 11 160
Brand: Knipex
SKU: 1658
Availability: InStock

Description

مقص كابلات نيبكس صناعة الماني مقاس ١٦٠مم عازل خفيف

Knipex 95 11 160

KNIPEX StepCut®

Cable Shears

>90 %

428 g

Small, light, strong: comfortable cutting without crushing and just 160 mm in size
Noticeably less effort: the gradations cut wires one after the other; cutting is up to 40% easier than with standard cable shears of the same length!
Ergonomic handle design: optimal cutting feel even for larger cable diameters

Cuts multi-core stranded copper and aluminium cables up to Ø 15 mm (50 mm²)
Cuts solid copper and aluminium cables up to 5 x 4 mm²
Cuts without crushing
Bolted joint: precise, effortless, durable
Pinch guard prevents operators’ fingers being pinched
Not suitable for steel wire and hard drawn copper conductors
Cutting edges additionally induction-hardened, cutting edge hardness approx. 56 HRC

Technical attributes

Part No.

95 11 160

EAN

4003773085904

Shears

burnished

Handles

with plastic coating

Weight

180 g

Dimensions

160 x 40 x 14 mm

REACH compliant

does not contain SVHC

RoHS compliant

not applicable

Cutting capacity copper cable, multiple-stranded

50 mm²

Cutting capacity copper cable, multiple-stranded

Ø 15 mm

AWG

1 / 0

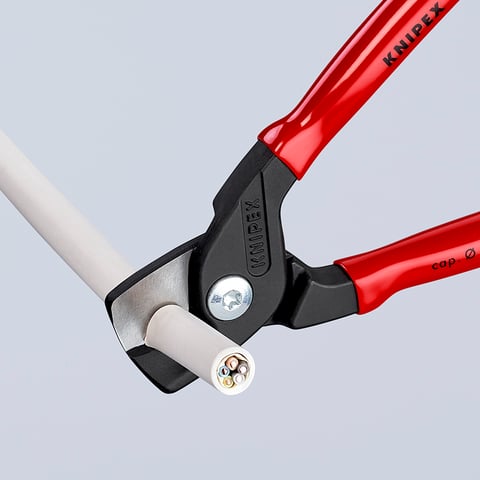

KNIPEX StepCut® Cable Shears | 95 11 160

KNIPEX StepCut Cable Shears: A quantum leap in cable cutting

Makes cutting up to 40 percent easier

Good news for all electrical professionals: The KNIPEX StepCut 95 11 160 cuts multi-core cables substantially more easily than cable cutters of a comparable length. It cuts wires and strands one after the other, reducing the effort required by up to 40 percent. This gives the cable shears, which are only 16 centimetres long, a surprisingly high capacity: They easily and precisely cut single and multi-conductor copper and aluminium cables up to a diameter of 15 millimetres (50 mm²) and solid NYM cables up to a maximum of 5 x 4 mm².

Sits comfortably in your hand: Plastic-covered handles

The handles, which have a practical plastic coating applied in a dipping process, make the cable shears non-slip and comfortable to hold. They protect the hands from contact with the bare steel in cold or hot temperature conditions.

Brief overview

Small, light, strong: Comfortable cutting without crushing, despite measuring just 160 mm

Noticeably less effort: The gradations cut wires one after the other

Ergonomic handle design: optimal cutting feel even for larger cable diameters

Cuts stranded Cu and AL multi-conductor cables up to Ø15 mm(50 mm²), solid core cables up to 5×4 mm²

Bolted joint: precise, effortless, durable

High-grade special tool steel, forged, oil-hardened, additionally induction-hardened cutting edges

Fast adjustment at the touch of a button on the workpiece

Chrome vanadium heavy-duty steel, oil hardened

The graduations separate individual wires one after the other, reducing effort

This is made possible by inductively hardened blades, with a milled serrated edge on the front and a flat edge on the back. Further plus points: The KNIPEX StepCut cuts surprisingly smoothly, mostly without crushing the cables; the pinch guard prevents injury; the bolted joint enables the cable cutter to work precisely and smoothly.

Step-by-step cutting explained: The KNIPEX StepCut takes a smart approach

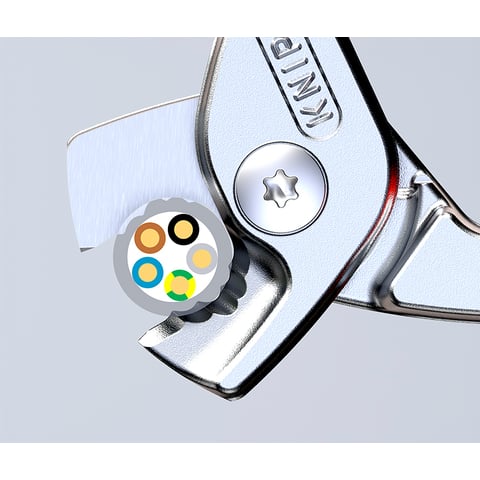

Light pressure on the handles is enough for the inductively hardened cutting edges to slice into the sheath of the multi-conductor cable.

This is how the graduations in the blades help

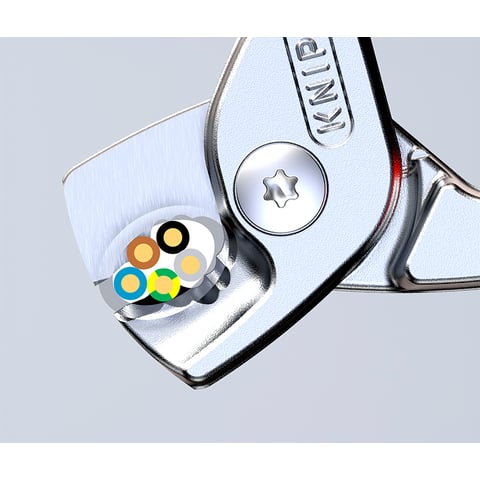

With just a little more pressure, the individual wires are arranged in line with the graduations.

Noticeably easier cutting

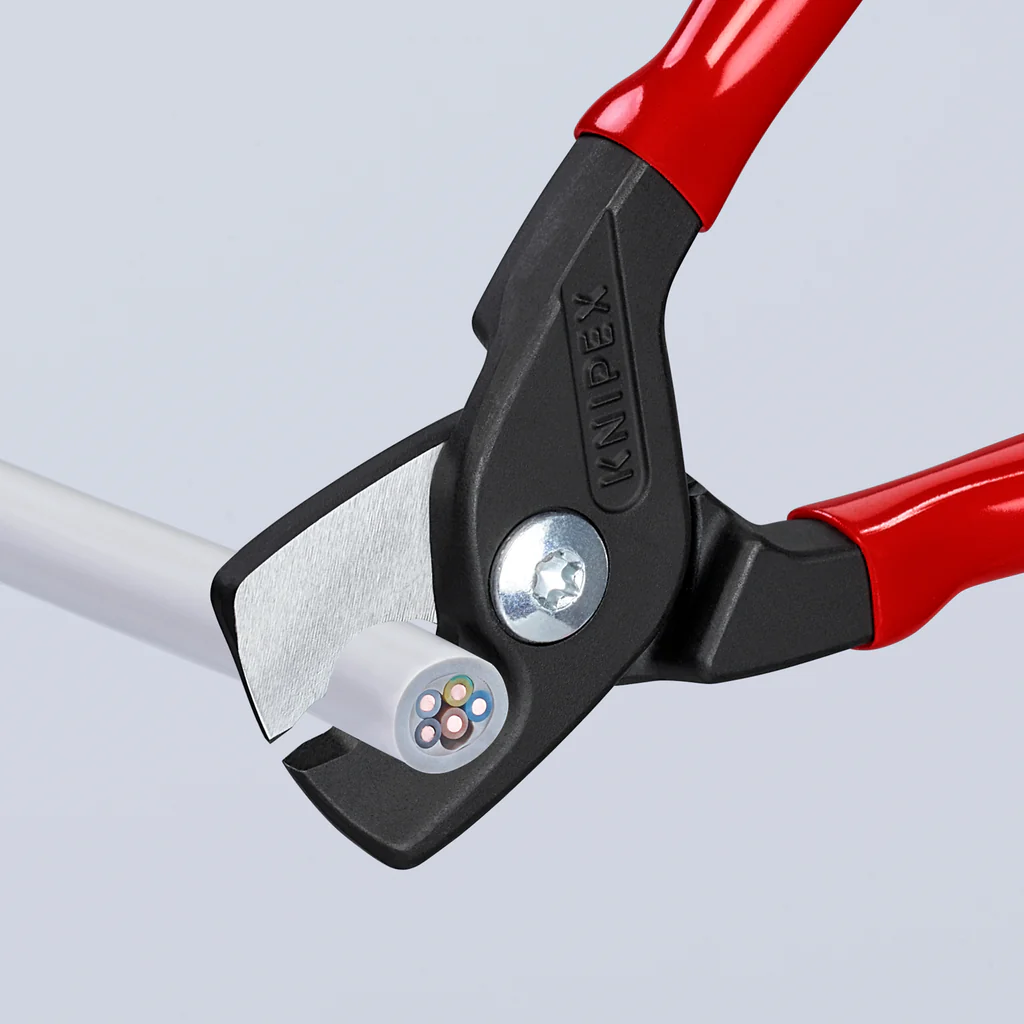

The KNIPEX StepCut then cuts the wires: First the single strands at the tip of the cutting edge, then the others. In particular when dealing with solid core lines, you can feel how the KNIPEX StepCut cuts the wires one after the other – right in your hand.

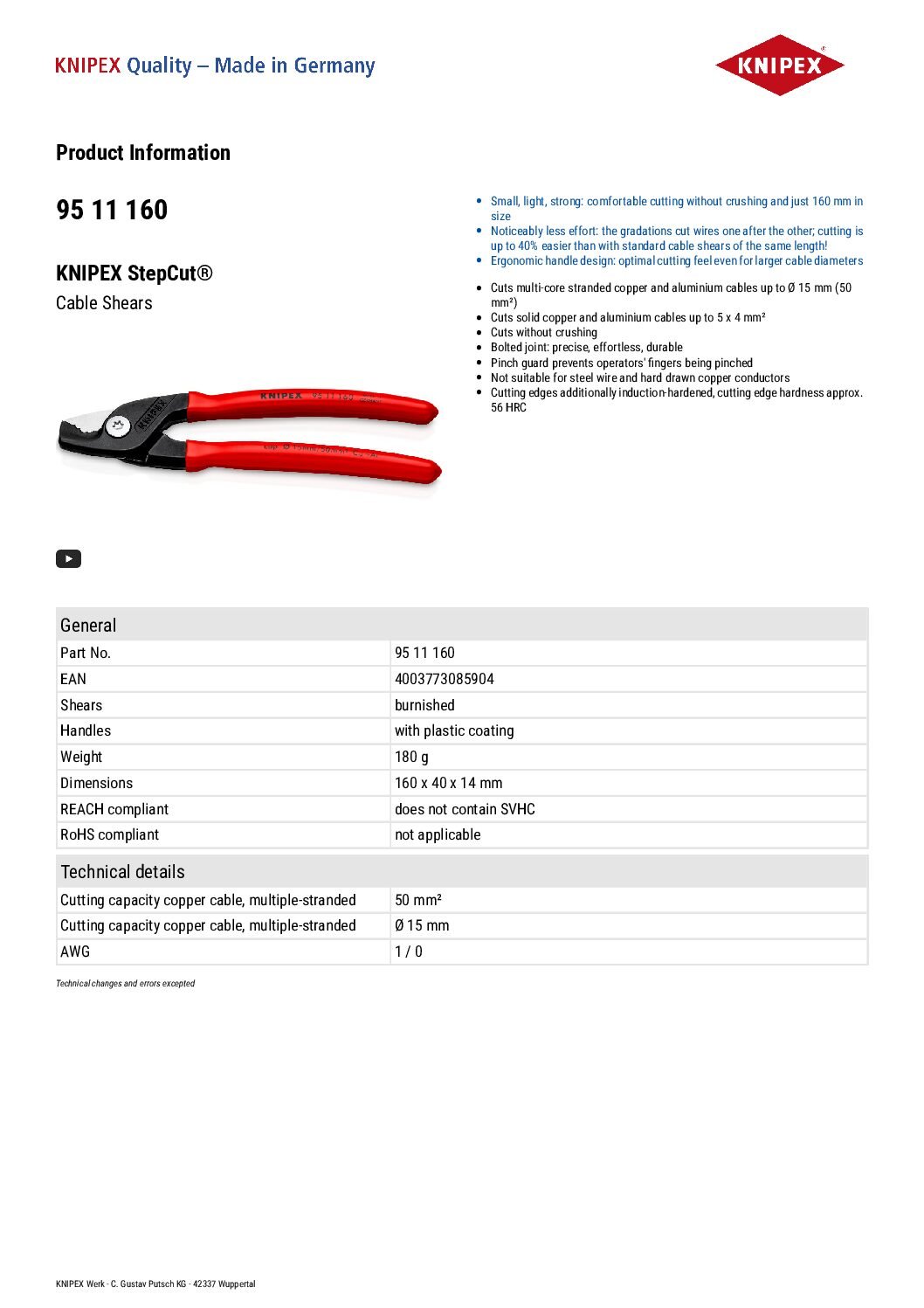

كتيب البيانات 95-11-160-en
