WURTH 8000070 UNIVERSAL PULLER 200X150 MM 1.08/2A

Sale!

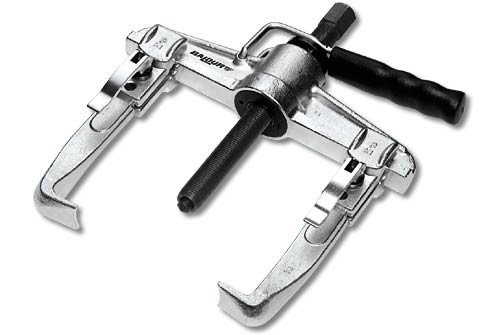

WURTH 8000070 UNIVERSAL PULLER 200X150 MM 1.08/2A
WURTH 8000070 UNIVERSAL PULLER 200X150 MM 1.08/2A - Image 2
WURTH 8000070 UNIVERSAL PULLER 200X150 MM 1.08/2A - Image 3

WURTH 8000070 UNIVERSAL PULLER 200X150 MM 1.08/2A

Original price was: 14.999,00 EGP.Current price is: 12.000,00 EGP.

صنع في المانيا

Add to wishlist
Categories: , , ,

Description

Wurth 8000070 UNIVERSAL PULLER 200X150 MM 1.08/2A

made by gedore in germany

  • زرجينة قضيب 2 رجل مقاس 150 مم 6 بوصة صناعة الماني
  • تصنيع شركة جيدور الالمانية لحساب شركة وارس الالمانية
  • Twice as fast and twice as simple
  • With the fast spindle adjustment feature, the spindle can be set the desired range in a moment. When the clamping yoke is released, the 4-part internal thread closes, and takes the full working pressure

Specification:

  • Clamping spread -max- external pulling (a, a1): 200
  • Clamping spread -min- internal pulling (a2): 110
  • Clamping spread -max- internal pulling (a2): 260
  • Clamping reach: 150
  • Loading max. t: 5,0
  • Spindle size (Thread x Length): G 1/2 x 210
  • Width Across Flat / Actuating Hexagon: 22
  • Width of hooked foot (c): 30
  • Depth of hooked foot (d): 18
  • Thickness of hooked foot at tip (e): 3,5
  • Weight: 4,1
  • Item no.: 1.08/2A
  • Code no.: 8000070
  • EAN: 4036976106114
