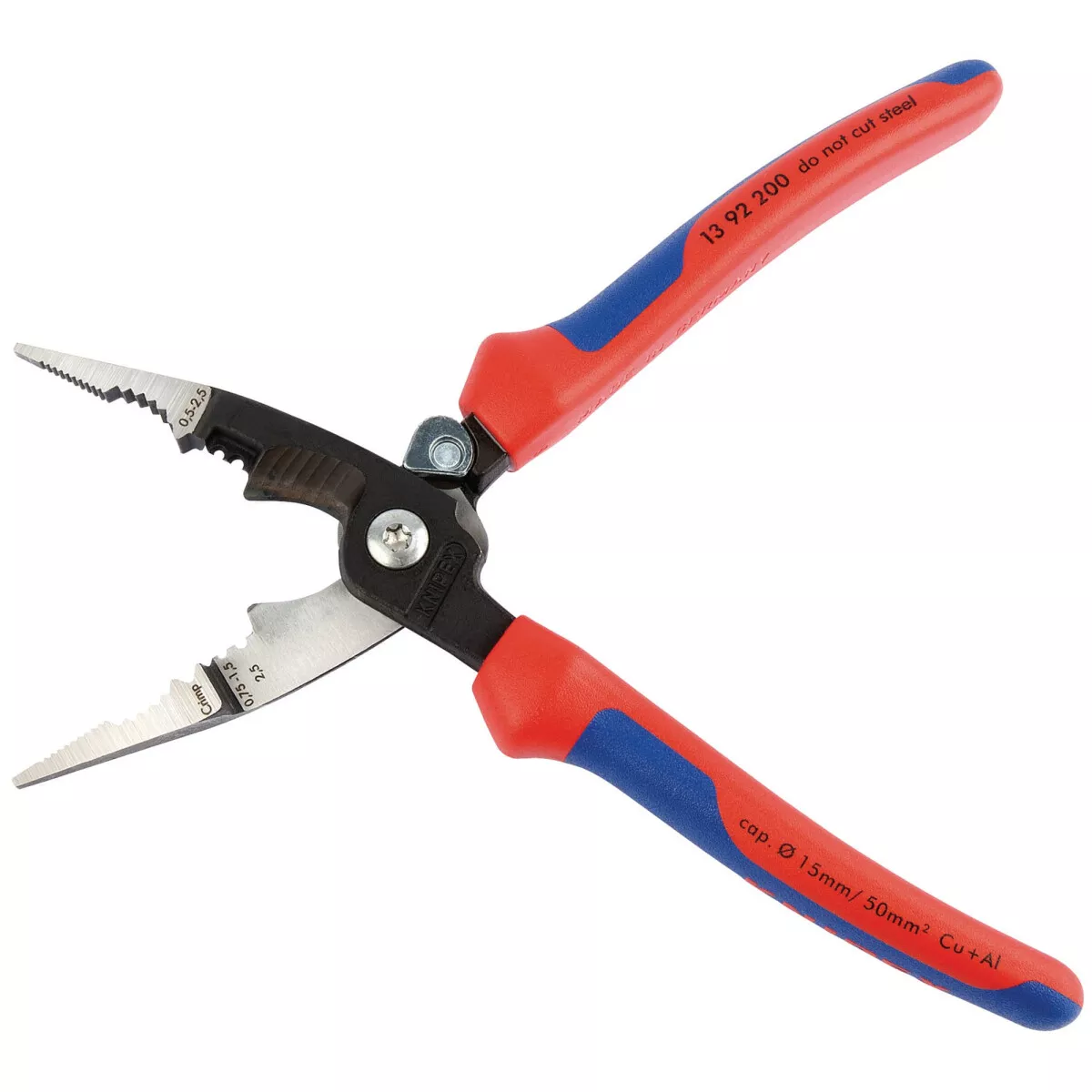

Knipex 13 92 200 Pliers for Electrical Installation

Sale!

Knipex 13 92 200 Pliers for Electrical Installation

Original price was: 4.200,00 EGP.Current price is: 3.499,00 EGP.

  بنسة زراديه متعددة الاستخدامات من نيبكس 6 وظائف مختلفة

صنع في المانيا

3 in stock

Description

  بنسة زراديه متعددة الاستخدامات من نيبكس 6 وظائف مختلفة

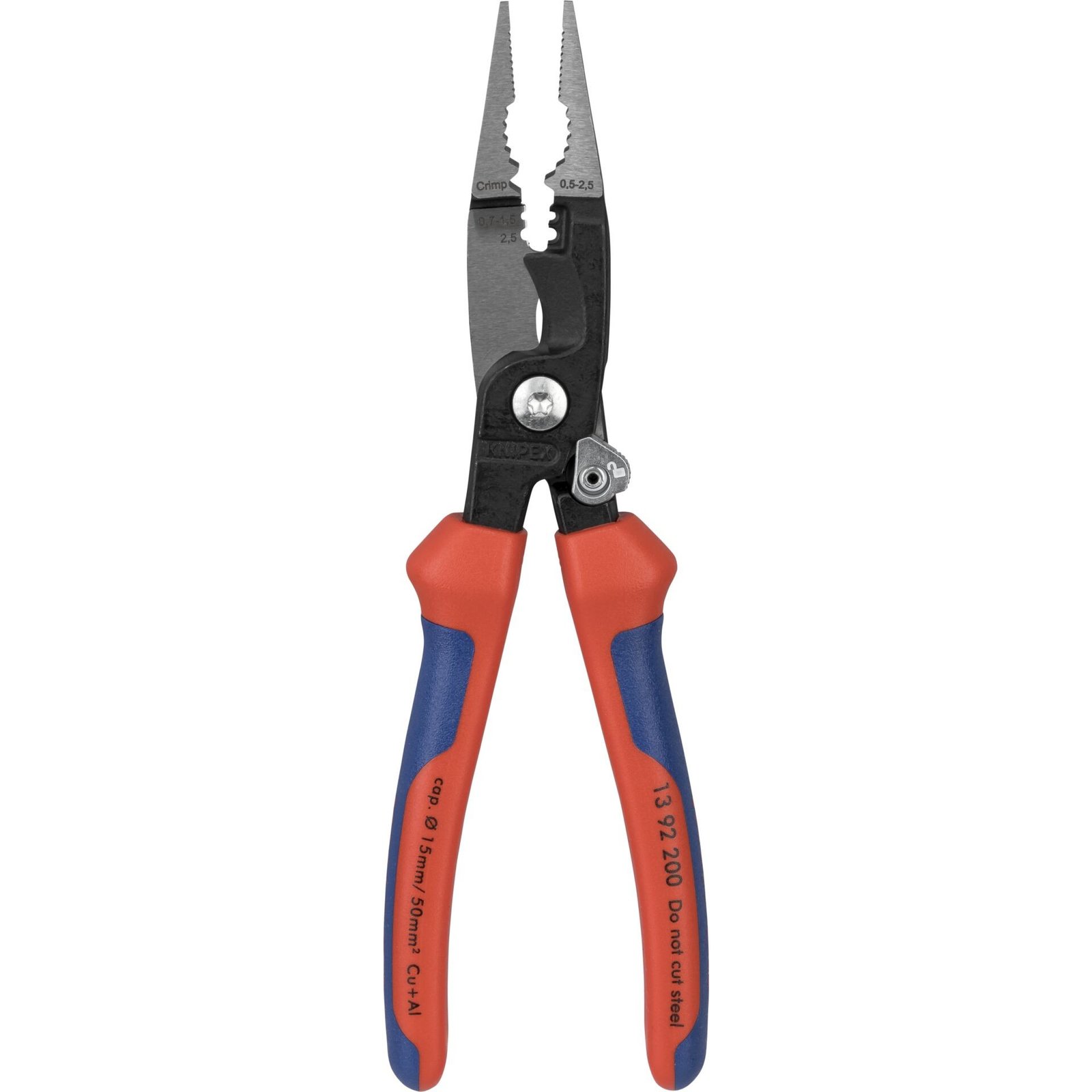

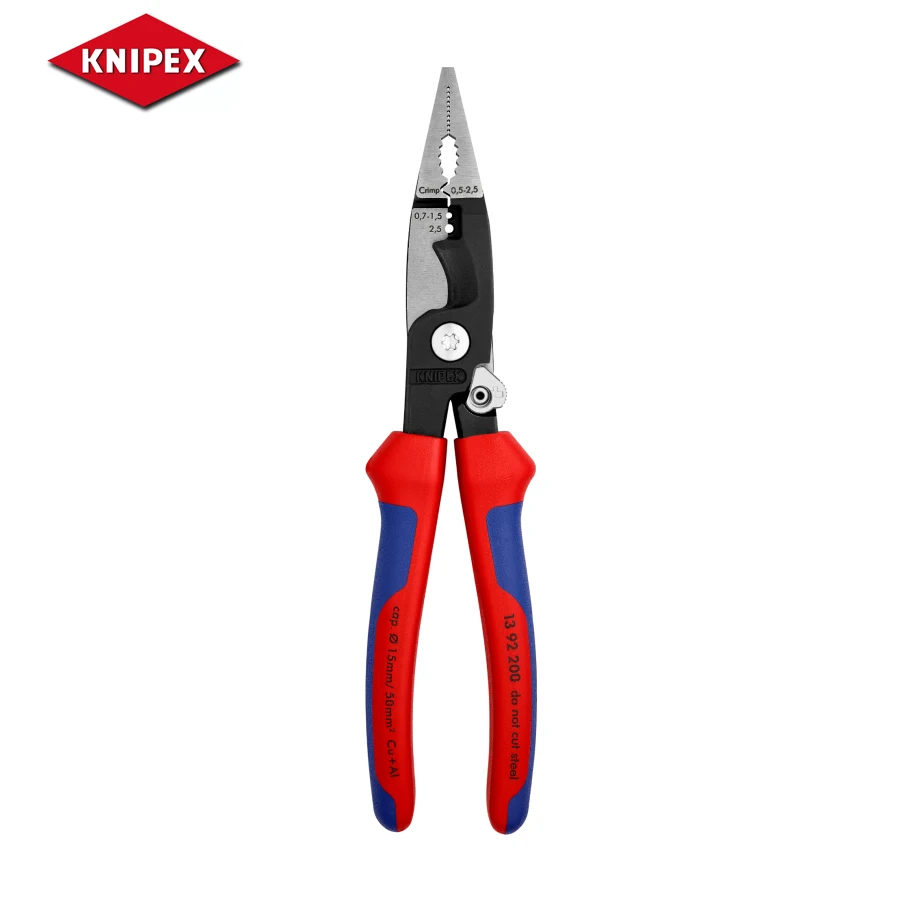

Knipex 13 92 200
Pliers for Electrical Installation

٦ وظائف في اداة واحده من نيبكس

لإمساك المواد المسطحة والمستديرة، للثني، وإزالة الأزيز، وقطع الكابل، وتجريد وتجعيد الحلقات السلكية

الأسطح الملساء بالقرب من الأطراف تمسك النوى المفردة دون إتلافها؛ أسطح قبضة مسننة وقبضة الأنابيب لإمساك المواد المسطحة والمستديرة

حافة خارجية واضحة على الأسطح القابضة للعمل على صناديق التوصيل المثبتة على التدفق وفتحات تغذية الأزيز

فتحات تجريد للموصلات من 0.75 – 1.5 مم² و2.5 مم²

يموت العقص للحلقات السلكية 0.5 – 2.5 مم²

مقصات الكابلات مع حواف قطع دقيقة (مقوية بالحث) لكابلات النحاس والألومنيوم حتى 5 × 2.5 مم² / Ø 15 مم

أبعاد رفيعة لسهولة الوصول

وصلة انسلامية: دقيقة، صفر عملية رد فعل عنيف من كماشة

في حالة النماذج ذات زنبرك مفتوح مدمج في المفصل، يحافظ ذراع القفل المنشط على حواف القطع مغلقة بينما تظل الوظائف الأخرى نشطة

تمكنك آلية الإغلاق الذكية من “الإمساك” دون فتح كماشة. تظل حافة القطع مغلقة ومحمية.

مع مقابض مريحة مصنوعة من ثلاثة مكونات مريحة للتعامل الأمثل ومع واجهتين KNIPEXtend للملحقات

  • 6 functions in one pair of pliers
  • To grip flat and round material, for bending, deburring, cutting cable, stripping and crimping wire ferrules

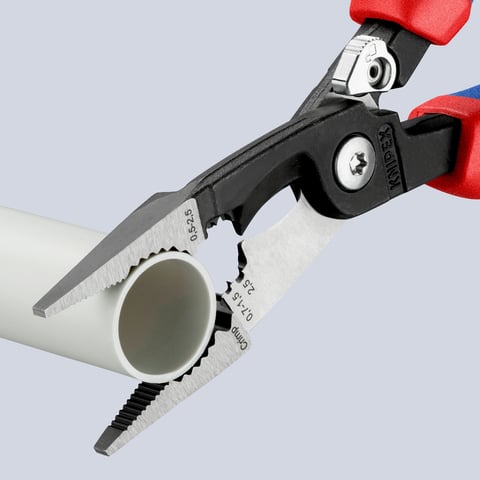

  • Smooth surfaces near the tips grip single cores without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material
  • Clear-cut outside edge on the gripping surfaces for working on flush-mounted junction boxes and deburring feed-through holes
  • Stripping holes for conductors of 0.75 – 1.5 mm² and 2.5 mm²

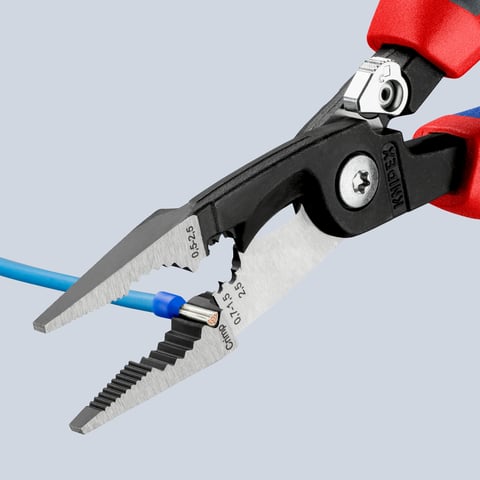

  • Crimping die for wire ferrules 0.5 – 2.5 mm²
  • Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² / Ø 15 mm
  • Slim dimensions for easy access
  • Bolted joint: precise, zero backlash operation of pliers
  • In case of models with opening spring integrated in the joint, the activated locking lever keeps the cutting edges closed while other functions remain active
  • The intelligent latching mechanism enables you to “grip” without opening the pliers. The cutting edge remains closed and protected.
  • With comfort handles made of three ergonomic components for optimised handling and with two KNIPEXtend interfaces for extensions

with plastic coating
multi-component grips
with comfort handles
Technical attributes
Part No.
13 92 200
EAN
4003773075103
Pliers
black atramentized
Head
polished
Handles
with comfort handles
Weight
266 g
Dimensions
200 x 59 x 23 mm
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Cutting capacity copper cable, multiple-stranded
Ø 15 mm
Cutting capacity copper cable, multiple-stranded
50 mm²
Stripping capacity for single strands
0.75 — 1.5 mm² / 2.5 mm²
Capacity in square millimetres
0.5 — 2.5 mm²
AWG
1 / 0

Pliers for Electrical Installation | 13 92 200

The multifunctional tool for electricians For cutting cable, for wire stripping, deburring, bending, gripping and crimping Due to their many functions, these universal pliers mean there is no need to constantly change tools. Just one tool is adequate for the most important, recurring work steps in electrical installation. With integrated pawl The activated pawl holds the cutting edges closed while other functions remain in place. With this intelligent closing mechanism, you can grip without opening the pliers. The cutting edge remains closed and protected.

Versatile tool for professional users The gripping surfaces of the installation pliers are smooth at the tip, enabling single conductors to be held and positioned without being damaged. There are profiled gripping surfaces and a pipe grip for gripping flat and round material. The induction hardened precision cutting edges produce clean cuts on Cu and Al cables up to Ø 15 mm. Thanks to their non-slip multi-component grips, the installation pliers are safe and comfortable to use. The electrical installation pliers save time, space and weight. At 200 mm long, they fit in any tool bag and with a weight of just 280 g they are light weight – especially compared to a number of individual tools.

Brief overview

Compact multifunctional tool

Six functions combined in one tool

Cuts cable up to Ø 15 mm

Wire stripping capacities for single conductors: 0.75 – 1.5 mm² and 2.5 mm²

Crimp die for end sleeves (ferrules) 0.5 – 2.5 mm²

Low weight (280 g)

Handles with multi-component grips

With pawl for gentle gripping

Forged from high grade special tool steel, oil hardened in multiple stages

Pliers for Electrical Installation | 13 92 200

Knipex quality and engineering services – Made in Germany

Two aspects are vital to the quality of a tool: the performance and durability. At Knipex, pliers are developed from the point of view of the user, and focus on their direct application. Knipex electrical installation pliers replace several tools. Uses are equally diverse – and last for several years of tough work. We forge our tools from quality materials, machine them with high precision on modern machinery and harden them carefully with multiple stage heat treatment. Every pair of Knipex pliers represents more than 130 years of specialist know-how.

Pliers for Electrical Installation | 13 92 200

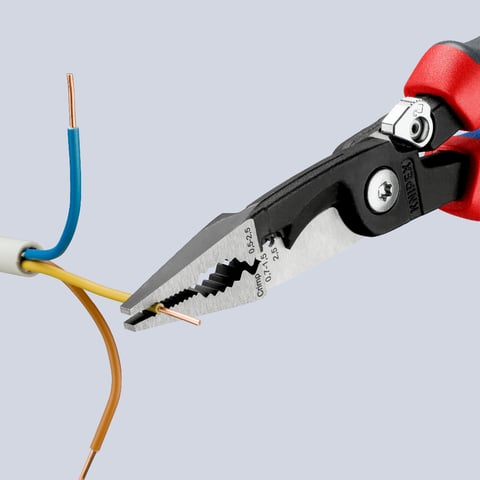

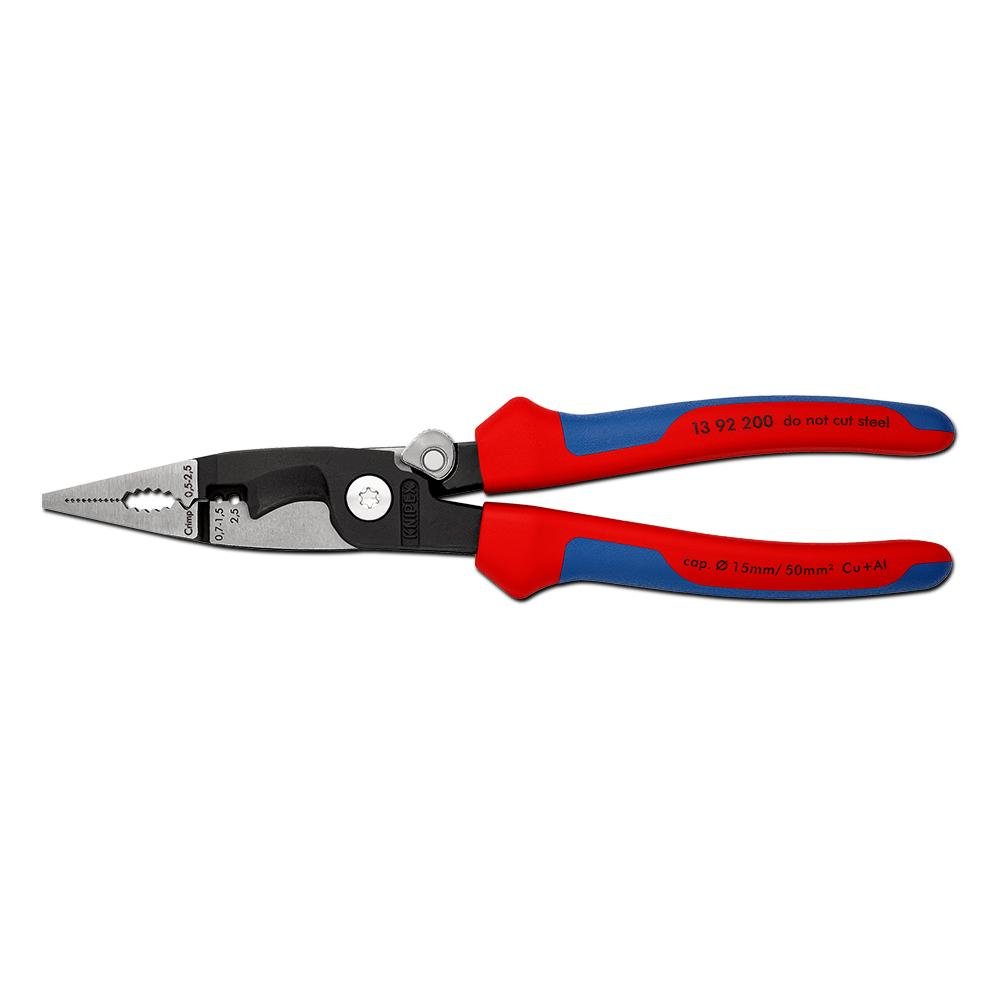

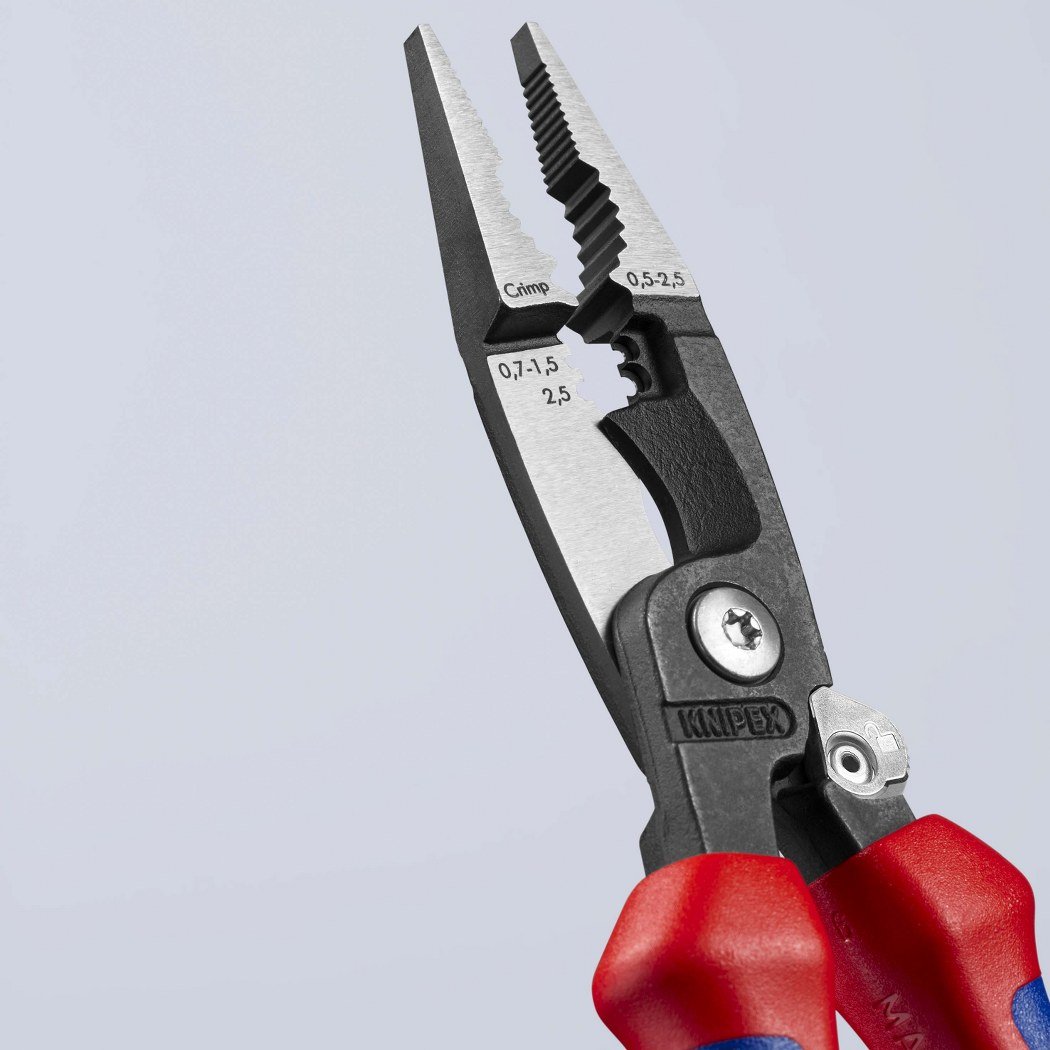

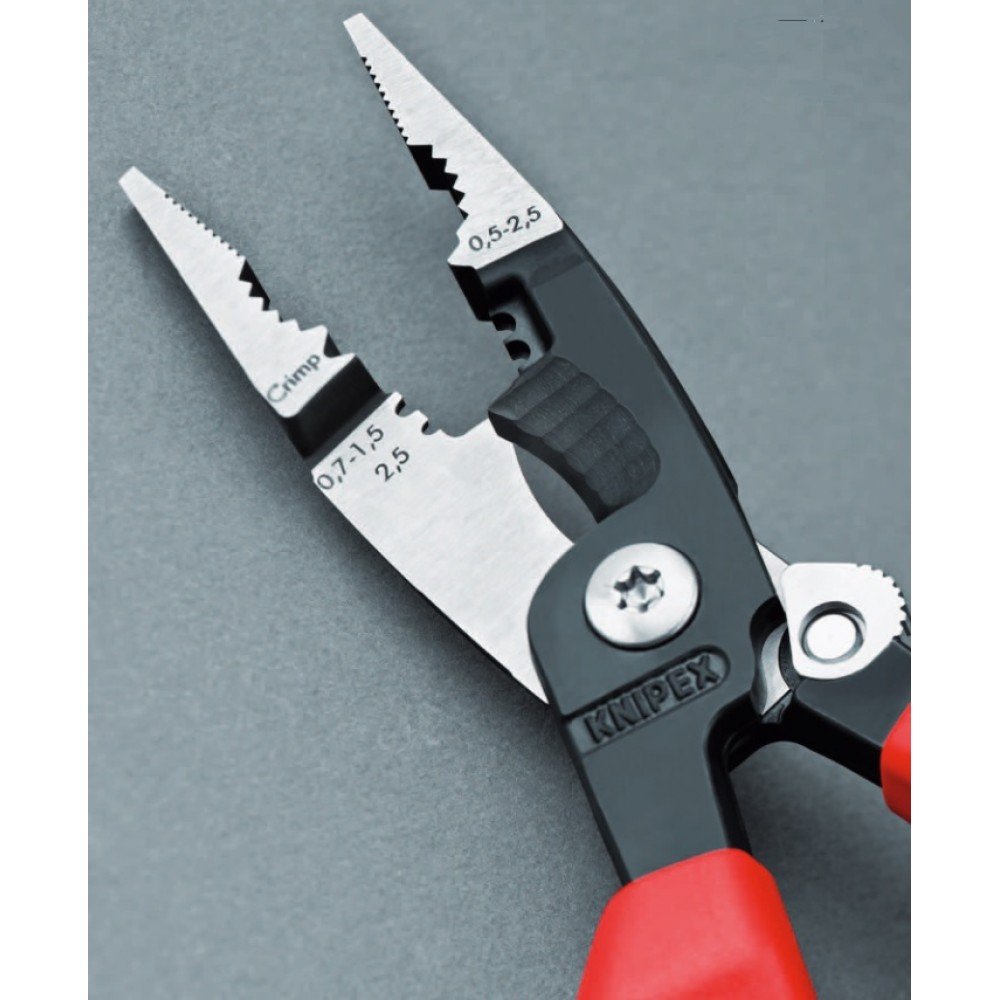

The pliers for electrical installation combine six functions in one pair of pliers.

Pliers for Electrical Installation | 13 92 200

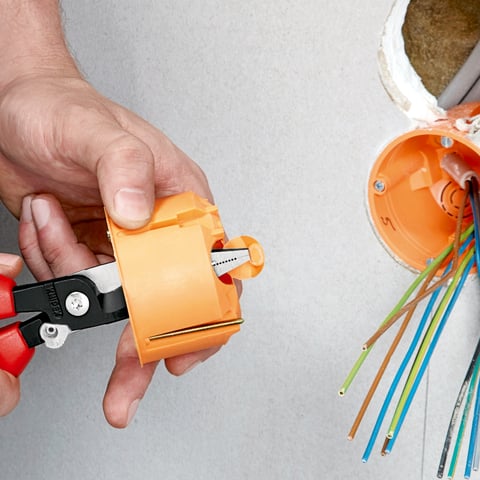

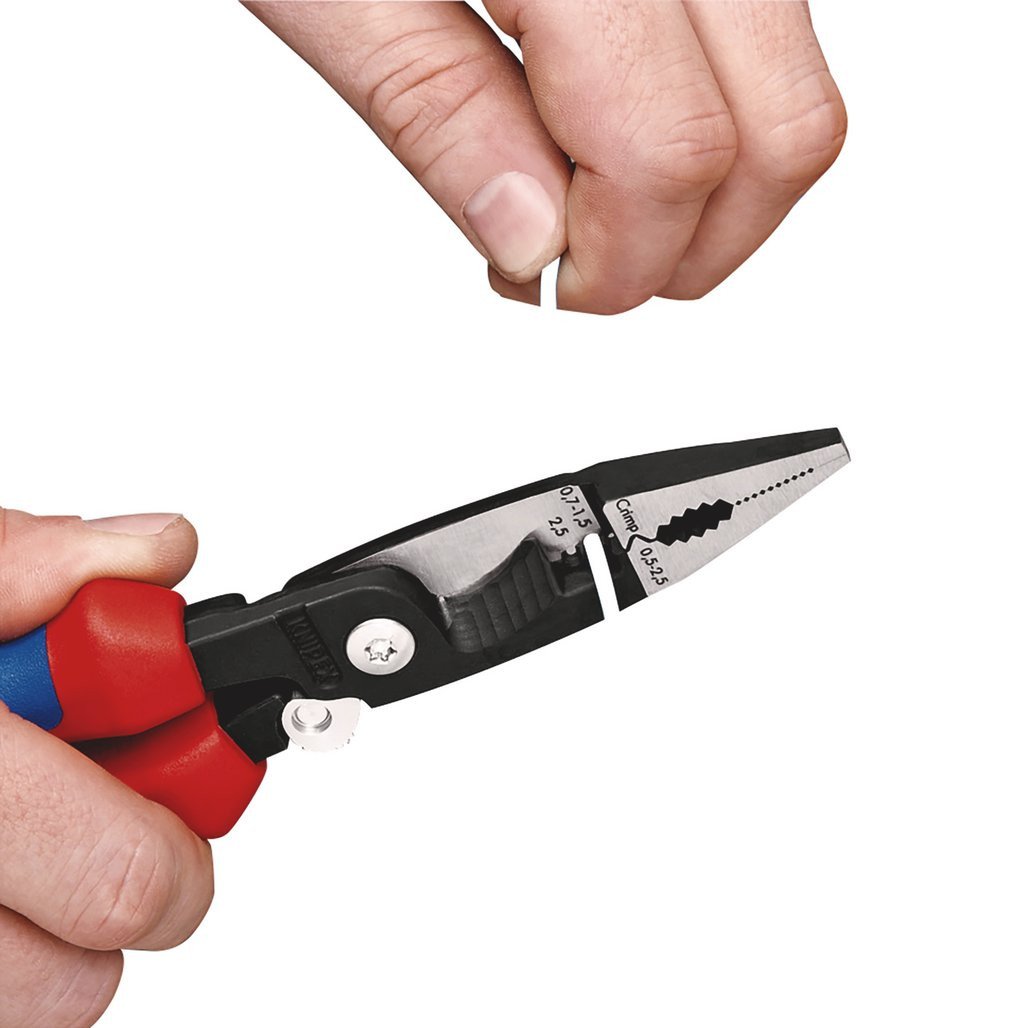

Pronounced outer edge for deburring and widening holes.

Pliers for Electrical Installation | 13 92 200

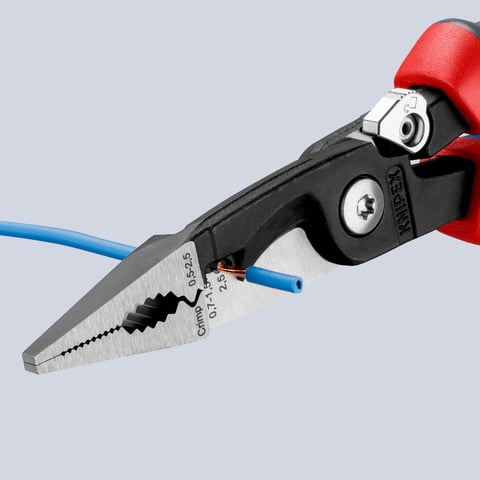

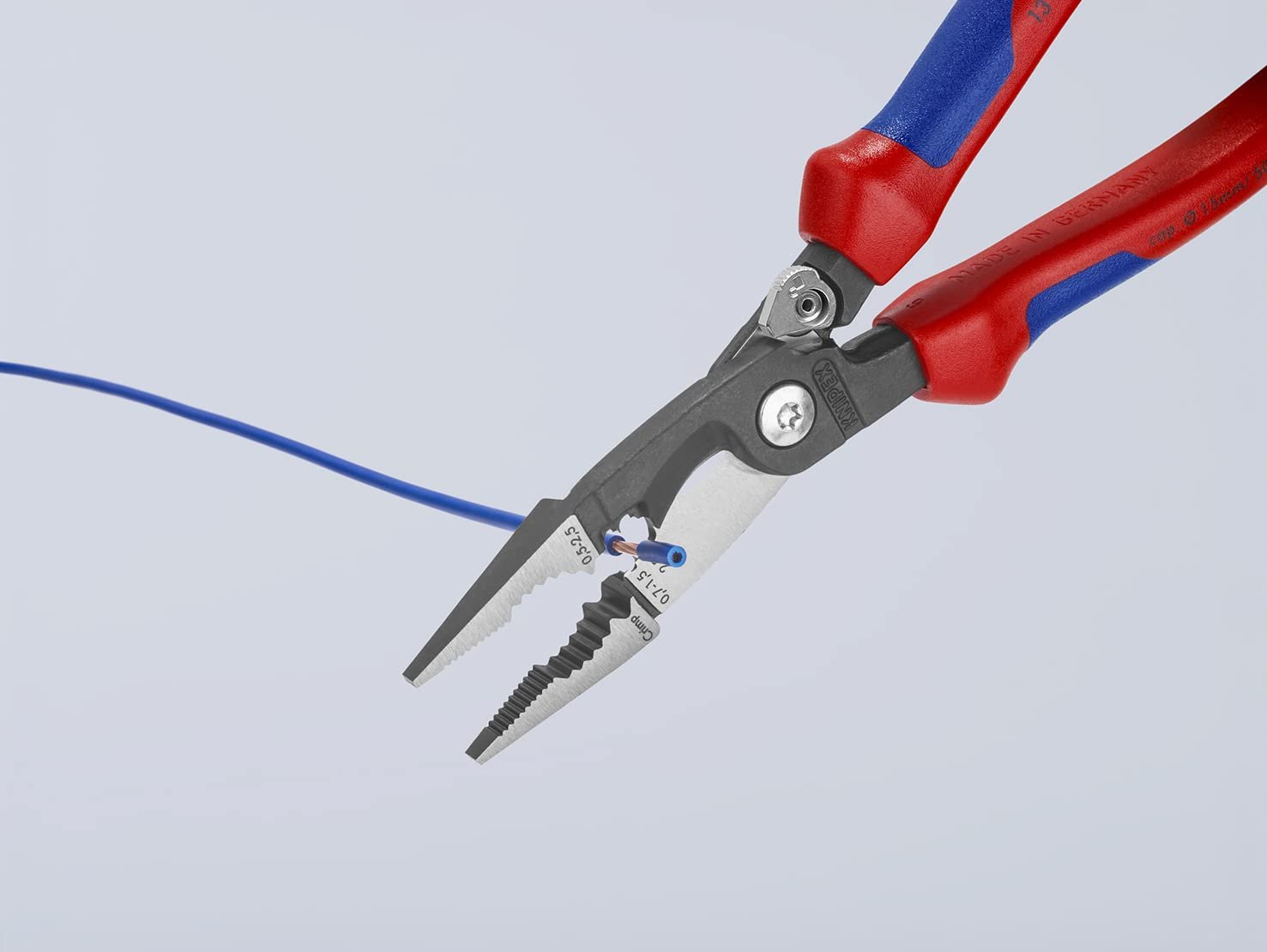

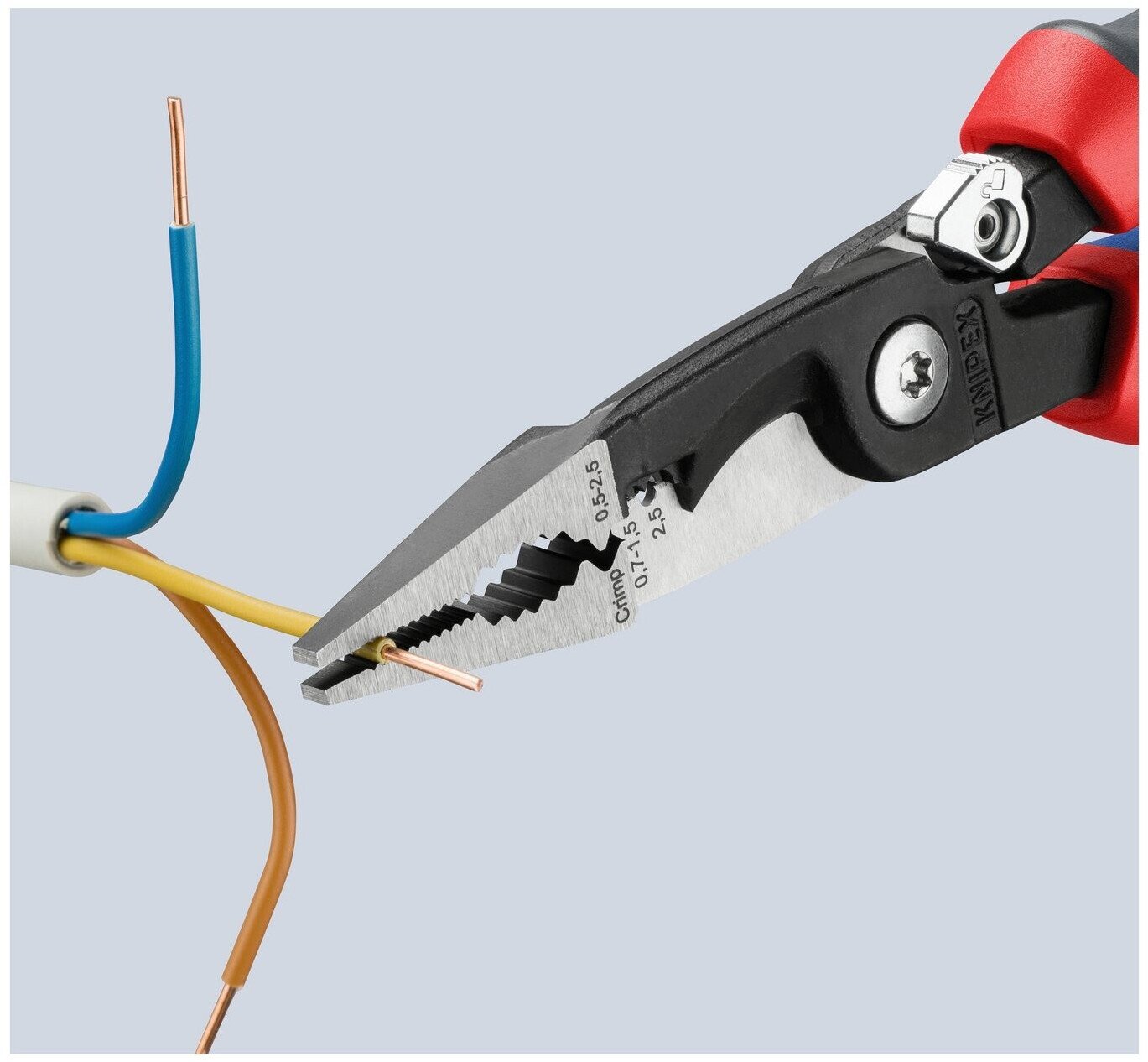

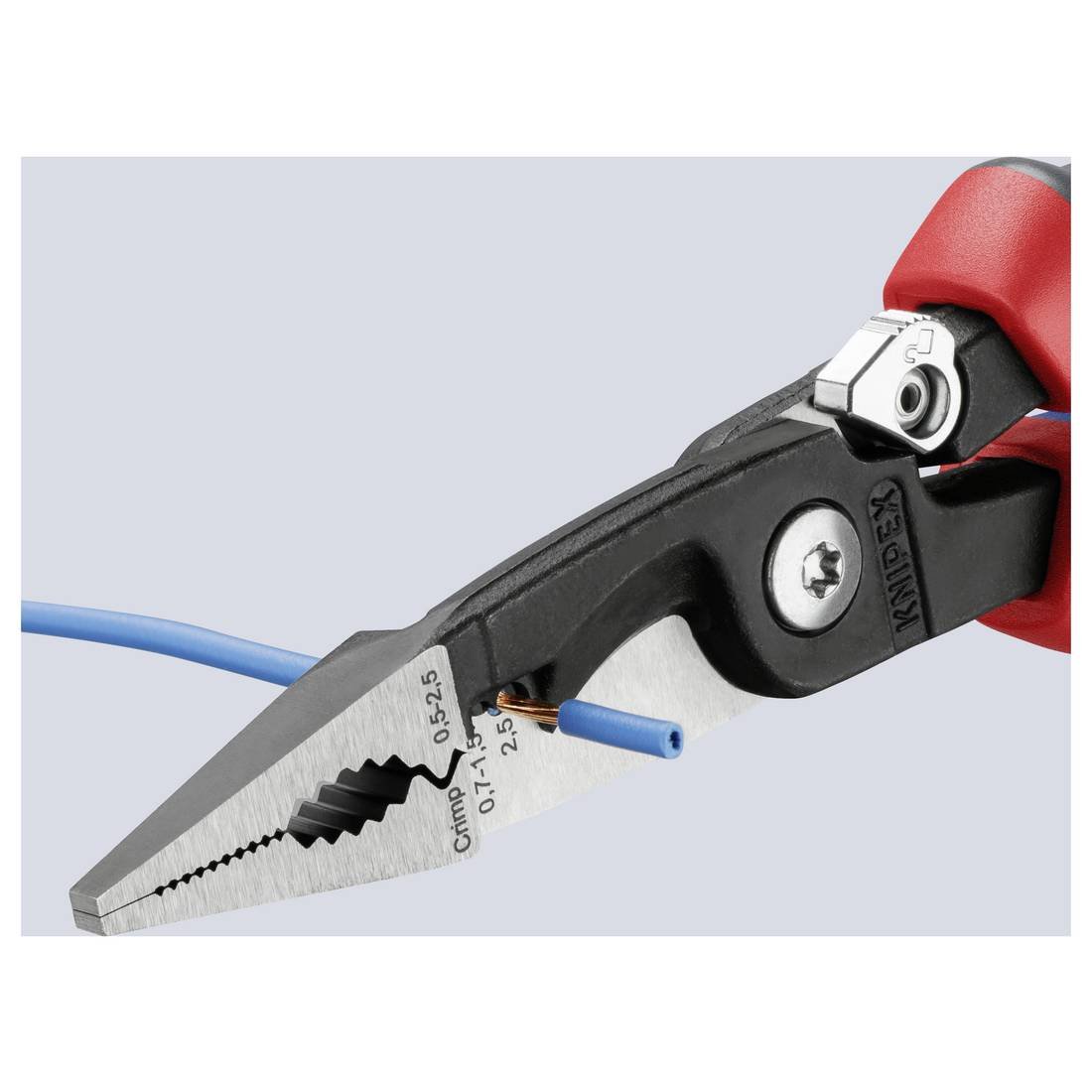

Wire stripping holes for conductors of between 0.75 to 1.5 and 2.5 mm².

Pliers for Electrical Installation | 13 92 200

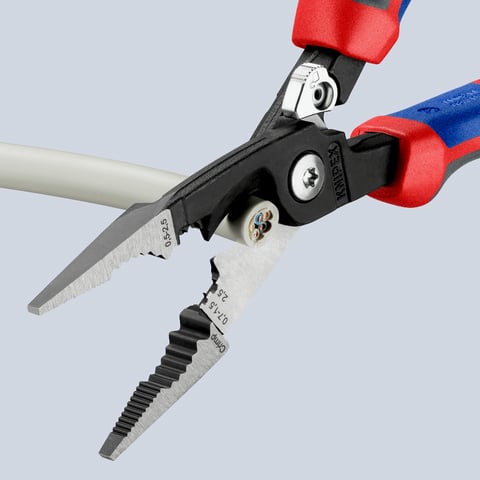

Cable shears for cutting copper cable.
